A well-designed horse stable is much more than a building divided into individual stalls. It is a carefully planned environment that supports horse health, safe handling, efficient daily work and emergency preparedness.
The main components of a horse stable usually include horse stalls, aisles, doors, flooring, ventilation, lighting, feed and tack rooms, washing areas, drainage, manure storage and fire-safety systems.
Depending on the size and purpose of the property, a stable may also include a grooming bay, veterinary area, foaling stall, office or indoor riding arena.
Understanding these components can help owners plan a safer and more practical equestrian facility.

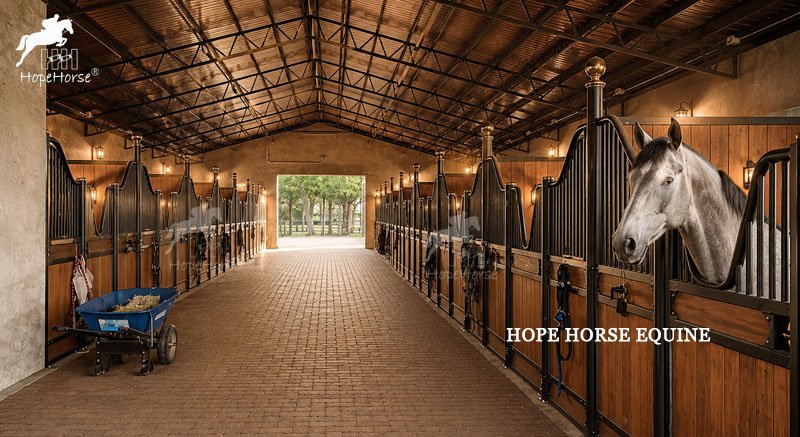

Individual stalls are the basic functional units of a horse stable. They provide horses with a protected area for resting, feeding, observation and short-term confinement.
A typical stall includes:
Strong front panels and horse partitions
A secure stall door
Non-slip horse stall flooring
Clean, absorbent bedding
A water source
A manger, hay feeder or other feeding arrangement
Adequate ventilation and lighting
For an average 1,000-pound horse, a 12-by-12-foot stall is a commonly recommended size. Smaller stalls may be suitable in some circumstances, but the horse must have enough room to turn, lie down and stand up comfortably.
Larger horses, mares with foals and horses kept indoors for long periods generally require more space.
Horse side panels should be high and strong enough to prevent kicking injuries or contact between incompatible horses. Upper grillwork can improve airflow, visibility and social contact, provided openings are designed to prevent a hoof, jaw or halter from becoming trapped.
For additional dimensions and construction considerations, see our horse stall size and design guide.

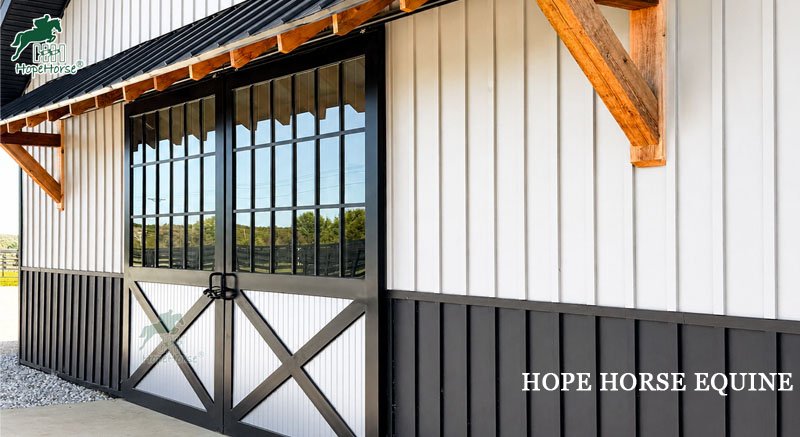

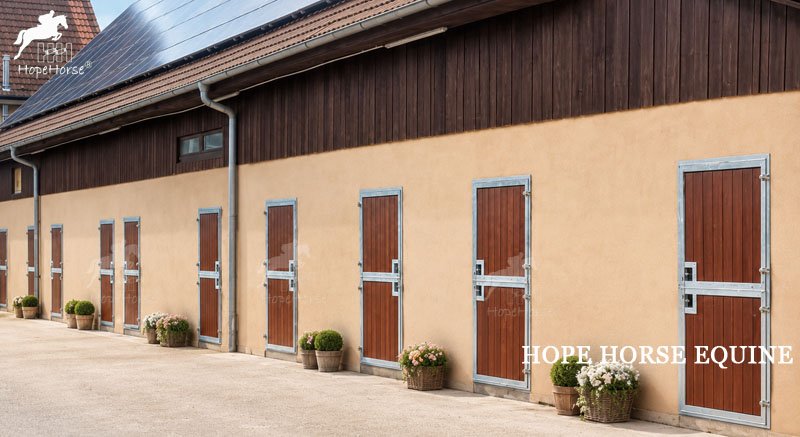

Stable doors are among the most important horse stable components because poorly designed openings can cause collisions, cuts and entrapment.
Sliding stall doors are widely used because they do not swing into the aisle. Hinged doors can also be suitable when they open outward and can be secured completely.
Door hardware should be durable, easy for handlers to operate and difficult for horses to manipulate.
All doorways should provide adequate clearance for both horse and handler. Main barn entrances must also be wide and tall enough for equipment, deliveries and emergency evacuation.
Sharp edges, exposed tracks, protruding bolts and narrow gaps should be avoided throughout the stable.
The central aisle connects the stalls with feed rooms, tack rooms, wash bays and exterior doors. It is also one of the busiest areas in the barn.
A good stable aisle should be:
Wide enough for horses to pass safely
Free from stored tools and equipment
Well illuminated
Easy to sweep and disinfect
Slip-resistant when wet
Properly drained
Cross-ties may be installed in a designated grooming area, but they should not obstruct routine traffic or emergency exits.
Hoses, forks, wheelbarrows and electrical cords should be stored away from the path used by horses.
A clutter-free aisle makes everyday work easier and creates a safer evacuation route during a fire or other emergency.

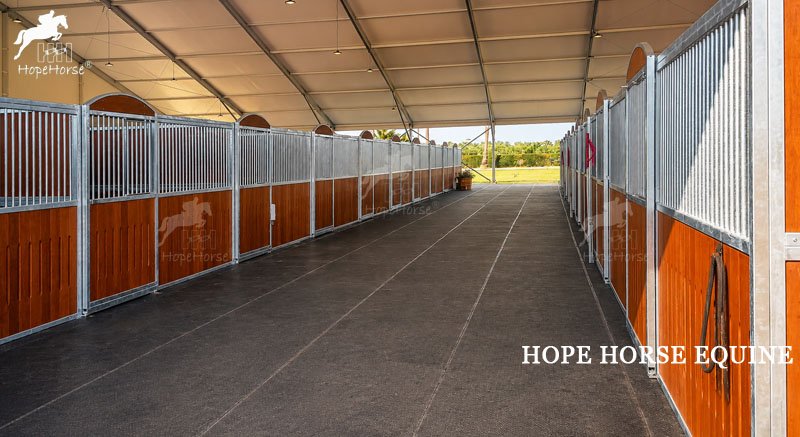

Flooring affects traction, hoof health, joint comfort, cleanliness and labor requirements. An ideal horse stable floor is durable, reasonably forgiving, non-slip, easy to clean and resistant to moisture and odor.
Common flooring options include:
Compacted clay
Road-base mixtures
Textured concrete
Asphalt
Rubber mats
Permeable grid systems
Concrete is durable and easy to disinfect, but it is hard on horses' legs when used without sufficient bedding or rubber mats.
Clay is more forgiving but may become uneven or retain moisture. Rubber mats can improve comfort and traction, although the base beneath them must still be stable and well drained.
Wash bays require an impermeable, non-slip surface and a drainage system that directs water away from horse traffic. Drains are usually safer along the side or rear of a wash area than directly beneath the horse.
The ground outside the building should also slope away from the stable to reduce flooding and moisture problems. Learn more in our horse barn flooring and drainage guide.
Ventilation is essential because horse stables continuously produce moisture, dust, ammonia, heat and odors. Poor air quality may contribute to respiratory irritation and can make the barn uncomfortable for both horses and people.
Effective natural ventilation normally combines:
Fresh-air inlets near the eaves
High-level outlets or ridge vents
Opening windows or doors
Open upper stall partitions
An unobstructed path for air to move through the building
Every stall should receive fresh air rather than relying only on airflow through the aisle. A circulation fan can move existing air, but it does not replace a system that brings outdoor air into the stable and removes stale air.
Hay and bedding should preferably not be stored directly above occupied stalls. Overhead storage can restrict airflow, introduce dust and increase the building's combustible fuel load.
The University of Minnesota Extension's barn ventilation guidance explains how ventilation removes moisture, ammonia, dust and excess heat.
A stable needs sufficient lighting for feeding, cleaning, grooming, veterinary care and early detection of injuries or illness.
Natural daylight from windows and translucent panels can be supplemented with protected artificial lighting.
Light fixtures should be positioned beyond a horse's reach and protected against breakage. Wiring should run through suitable conduit so horses and rodents cannot damage it.
Outlets, switches and electrical equipment must be appropriate for a dusty agricultural environment and installed according to local electrical and fire codes.
Emergency lighting near exits is particularly useful if power is lost during an evacuation.
A separate feed room keeps grain, supplements and equipment organized while limiting access by horses, rodents and wildlife.
Useful feed-room components include:
Secure doors
Rodent-resistant feed containers
Easy-to-clean floors
Shelving for supplements
Clear feed labels and instructions
A suitable fire extinguisher nearby
Feed should be kept dry and protected from contamination. Chemicals, medications and pest-control products should not be stored where they can contaminate horse feed.
Hay requires a dry, ventilated storage area. From a fire-safety perspective, storing hay and bedding in a separate building is preferable to keeping large quantities inside the horse barn. Wet hay can heat internally and become a fire hazard.
The tack room provides clean, secure storage for saddles, bridles, blankets, grooming tools and other equipment. It should be dry, ventilated and protected from rodents and excessive humidity.
Common tack-room fittings include:
Grooming-tool storage
Space for cleaning leather equipment
Positioning the tack room near the grooming or tacking area improves workflow. However, equipment should never be allowed to spill into the main aisle.
A wash bay gives handlers a designated place to bathe horses, cool them after exercise and clean minor wounds. The area should have good lighting, safe tie points, non-slip flooring and reliable drainage.
Hot and cold water may be beneficial in larger facilities, particularly in colder climates. Pipes and taps must be protected from horses and freezing temperatures.
A separate grooming bay can reduce congestion in the aisle. Cross-ties should include breakaway features or other emergency-release arrangements appropriate to the facility.
Horses need consistent access to clean water. Stables may use buckets or automatic waterers. Buckets are easy to inspect and measure, while automatic systems reduce carrying labor.
Automatic waterers must be checked daily because a frozen pipe, mechanical failure or contamination may otherwise go unnoticed.
Feeders should be smooth, strong and positioned to reduce injury and contamination. Horses naturally eat forage with their heads lowered, so feeding arrangements should consider normal posture and respiratory health.
All buckets, troughs and feeders require routine cleaning.
Manure, wet bedding and spoiled feed must be removed regularly to control odors, flies, moisture and ammonia. A stable therefore needs an efficient route from each stall to an appropriate storage or composting area.
The manure storage site should be:
Convenient for daily cleaning
Accessible to removal equipment
Separated from horse housing when practical
Protected against excessive rainwater
Located away from wells, streams and drainage channels
Managed according to environmental regulations
Covered storage reduces rainwater infiltration and contaminated runoff. Penn State Extension provides further information on horse stable manure management.
Horse barns contain many combustible materials, including hay, bedding, dust and wood. Fire prevention should therefore influence the entire stable layout.
Important precautions include:
Multiple clearly accessible exits
Smoke or heat detection systems suitable for barns
Correctly positioned fire extinguishers
Protected electrical wiring
No smoking rules
Separate hay and bedding storage
Safe fuel and machinery storage
An emergency contact list
A practiced horse evacuation plan
Each horse should have a correctly fitted halter and lead rope available in an agreed location, but equipment must not create an entanglement hazard inside the stall.
Penn State Extension recommends storing hay and bedding separately from horse housing in its guidance on fire safety in horse stables.
Facility owners should also coordinate emergency planning with their local fire department.
Stable design should support safe movement between stalls, paddocks, pastures, arenas and loading areas. Gates should be wide, visible and easy to operate without placing the handler in a dangerous position.
Fencing must be appropriate for horses and inspected regularly. Barbed wire, protruding fasteners and openings that can trap a hoof should be avoided.
High-traffic gateways may require reinforced footing and drainage to prevent mud.
Read our guide to safe horse fencing and paddock design before planning turnout areas.
Commercial, breeding or training facilities may also require:
A veterinary examination area
An isolation stall
A larger mare-and-foal stall
A heated or ventilated drying area
A laundry room
A barn office
Staff facilities
Trailer parking
An indoor arena
Secure medicine storage
Isolation and veterinary spaces may need washable solid partitions and dedicated ventilation to reduce disease transmission.
The best stable layout depends on the number and size of horses, climate, daily routine, available land and the facility's purpose.
A small private barn will have different requirements from a boarding yard, breeding facility or veterinary center.
Before construction:
Map the daily movement of horses, people, feed and manure.
Identify at least two practical evacuation routes.
Plan ventilation before fixing the final roof and stall layout.
Separate clean storage from manure and washing areas.
Choose flooring according to drainage and maintenance needs.
Consult a veterinarian, experienced equestrian designer and local authorities.
Verify building, electrical, fire, drainage and animal-welfare requirements in your location.
The essential components of a horse stable work together as one system.
Safe stalls are only effective when the building also has good ventilation, non-slip flooring, efficient drainage, organized storage and a realistic emergency plan.
By designing around horse welfare and everyday workflow, owners can create a stable that is healthier for horses, safer for handlers and easier to maintain over the long term.
Q: What are the main components of a horse stable?
A: The main components include individual stalls, doors, aisles, flooring, ventilation, lighting, water and feeding equipment, a feed room, tack room, wash area, drainage, manure storage and fire-protection systems.
Q: What is a standard horse stall size?
A: A 12-by-12-foot stall is commonly recommended for an average 1,000-pound horse. The correct size depends on the horse’s height, body size, mobility and time spent indoors.
Q: What is the best flooring for a horse stable?
A: There is no single best material for every stable. A properly prepared base topped with compacted material or rubber mats is common. The finished surface should provide traction, comfort, drainage and easy cleaning.
Q: Why is ventilation important in a horse stable?
A: Ventilation removes moisture, heat, dust, odors and ammonia while delivering fresh air to each horse. It supports respiratory health and helps control condensation and mold.
Q: Should hay be stored inside a horse barn?
A: Large quantities of hay are safer in a separate, dry and ventilated building because hay and bedding add combustible material to the stable. Local fire regulations should always be checked.
Q: Does every stable need a wash bay?
A: A dedicated wash bay is not essential for every small stable, but it makes bathing, cooling and routine care safer. It should have non-slip flooring, protected plumbing and adequate drainage.
