Feeders and waterers in a stable come into direct contact with horses every day.
If installed improperly, feed may constantly fall into the water; poorly designed brackets or seams can create hazards where a horse might get caught; and if automatic waterers are not well-maintained, they may stop refilling even while water remains in the bowl.
When selecting stall feeders and waterers, consider the needs of the horses, the tasks of the staff, and the requirements for daily maintenance.
Equipment should allow horses easy access to food and water, while also enabling staff to conveniently inspect, clean, and identify any issues.
Concentrate mangers, hay feeders, and waterers serve different functions; they should not be installed based solely on their appearance.

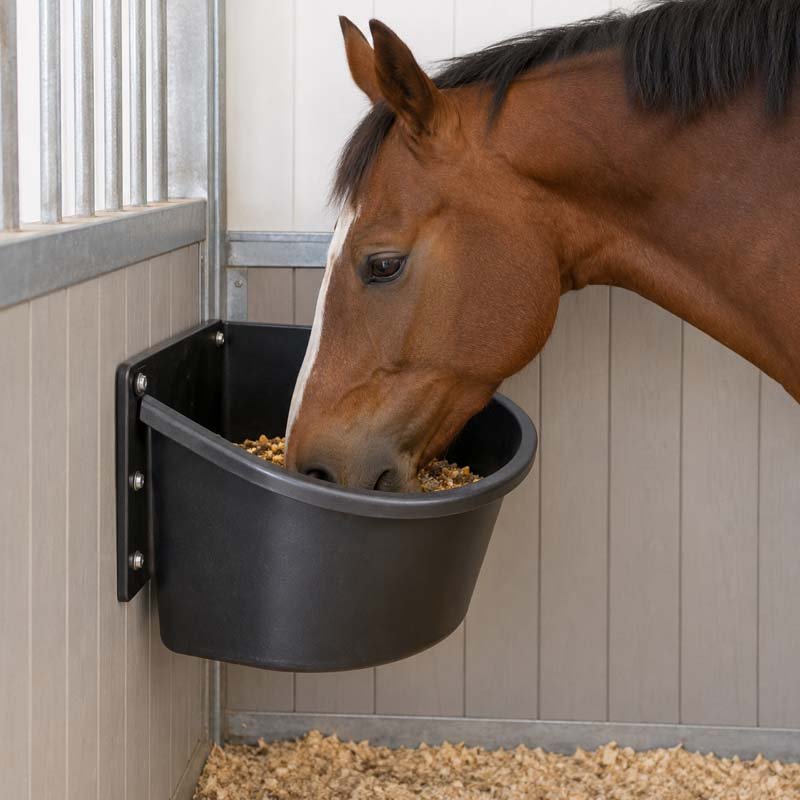

Concentrate mangers or feed buckets are designed for grains, supplements, or wet mashes. Key selection criteria include ease of emptying, smooth edges, secure mounting, and convenience for cleaning.

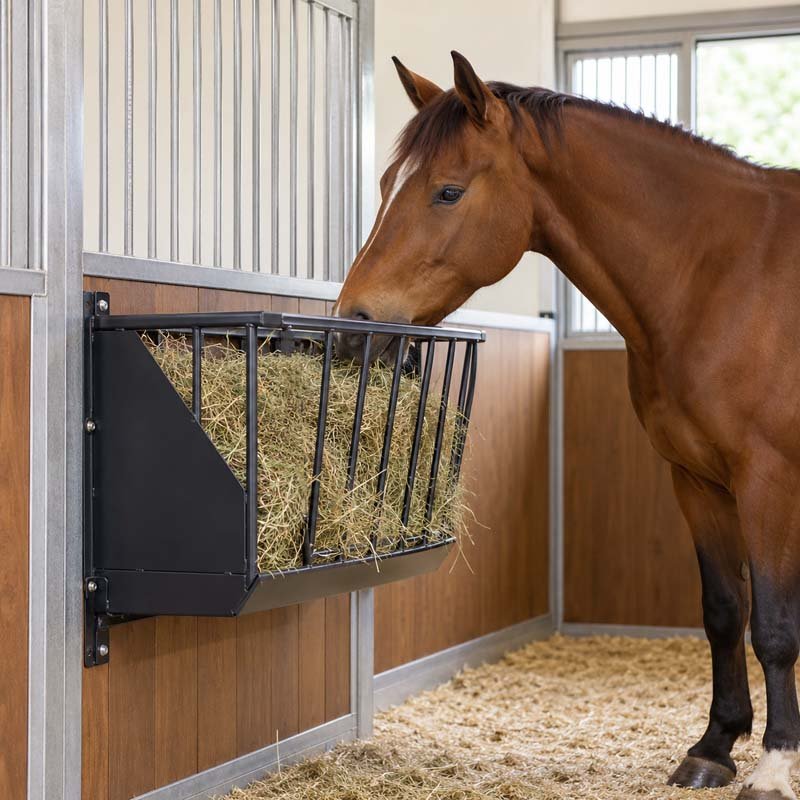

Hay feeders provide roughage; considerations here include the horse's posture while eating, the risk of the horse getting caught, the actual ease of consumption, and the removal of leftover hay.

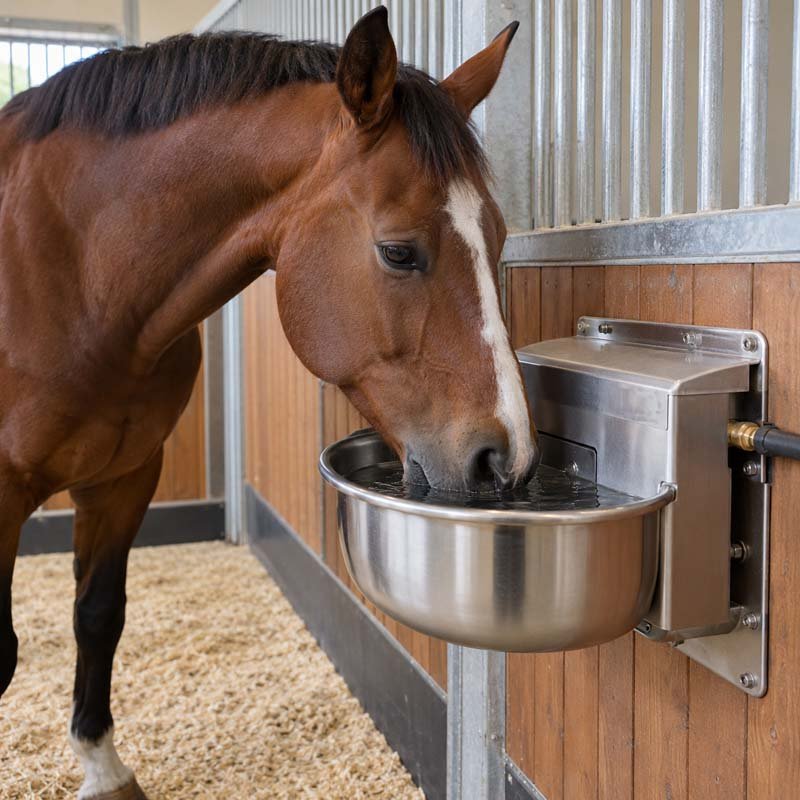

Water buckets or automatic waterers provide a continuous supply of clean water. Focus on accessibility, the reliability of the refill mechanism, ease of cleaning, and the ability to monitor water consumption.
Equipment suitable for a full-sized adult horse may not be appropriate for a pony, a foal, or an older horse with limited mobility. When adjusting equipment, do not rely solely on the horse’s height; also observe its mouth movements, feeding habits, and whether it has a tendency to paw at the ground.
1. Separate feeding and watering areas
If a concentrate manger is placed too close to a water bucket, a horse might accidentally drop feed into the water while chewing or turning its head. Similarly, placing a hay feeder directly above a waterer increases the risk of hay debris contaminating the water. Therefore, feeding and watering stations should be kept separate.
There is no need to mandate a fixed distance for every stall. A more practical approach is to observe the horse during several feedings: check if feed consistently ends up in the water, and then adjust the positioning to see if the situation improves.
2. Allow Space for Turning, Lying Down, and Movement
The floor plan should clearly indicate the swing radius of doors, the depth of any protruding equipment, and the area available for the horse to move around. While corner installation can save space, you must ensure the horse can still approach, back away, and turn around naturally.
3. Plan for Equipment Removal and Maintenance
When selecting a location, simulate the maintenance process:
Can a water bucket be removed without getting stuck on door frames or partitions?
Can an automatic waterer be detached for cleaning, and where will the wastewater drain?
Can your hands and a cleaning brush reach the bottom and corners?
Is the water shut-off valve easily accessible?
Once a container is removed, do the remaining mounting brackets pose any safety risks?
It is not advisable to set a universal "height from the floor" standard that applies to all horses and all types of equipment.
For wall-mounted buckets or automatic waterers, determine the height based on manufacturer recommendations and the horse’s natural posture: the horse should be able to reach in comfortably without having to lift its head or twist its neck, and the design should prevent the horse from accidentally stepping into the container.
Hay-feeding equipment requires a separate assessment. While low-level feeding promotes a more natural head and neck posture, you must address risks such as ground contamination, contact with the horse’s hooves, and the potential for entanglement in hay nets. If using a hanging hay net, consider how its position might shift as the hay is consumed.
After installation, observe the setup under three conditions:
Is the equipment easy for the horse to use when full?
As the contents are consumed, does the equipment sag, create gaps, or become difficult for the horse to access?
When the equipment is removed for cleaning, do the remaining mounting fixtures expose any dangerous, sharp edges?
Re-evaluate the installation height whenever a new horse moves in, or if there are significant changes to the thickness of stall mats or bedding.
Concentrate Mangers: Prioritize Ease of Complete Cleaning
When selecting a manger, check for narrow corners that are difficult to scrub, edges where damp feed might accumulate, and mounting systems that facilitate easy, routine removal for cleaning.
In stables where wet feed is used, it is particularly important to ensure that no old feed remains at the bottom of the manger before adding a fresh portion. Checking for leftovers before each feeding also helps staff identify changes in a horse’s appetite.
If you prefer to add feed from the stable aisle, consider the various front panel, door, and feeding accessory options offered by HopeHorse during the initial planning phase. This includes features like feeding hatches and swing-out manger panels; for any specific selection, be sure to verify the locking mechanism, pinch-point protection, and ease of cleaning.
Slow-feed hay systems: Consider both the rate of consumption and the actual feeding behavior.
When selecting a slow-feed system, observe the following:
Can the horse access the hay consistently and smoothly?
Does the horse pull at the hay aggressively, bite the frame, or kick the equipment?
Is the amount of hay actually decreasing, or does it just appear to remain full?
Are there any signs of new wear, tears, or loose/sagging loops or cords?
Exercise extra caution when using hay nets for horses that are shod, prone to pawing, or likely to lift their hooves into the feeding area. A small mesh size alone does not guarantee the absence of an entanglement risk.

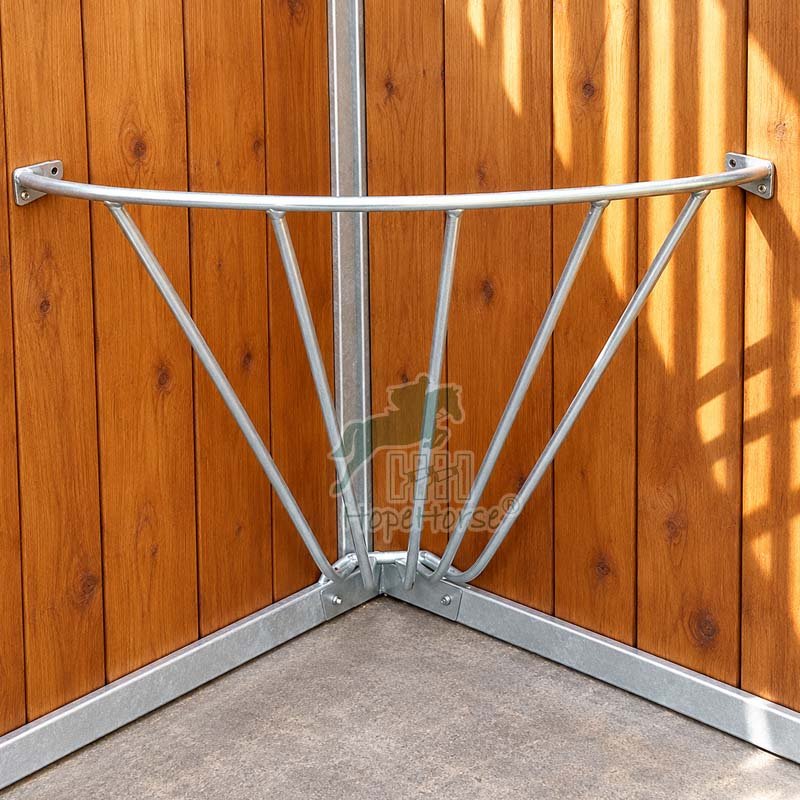

HOPE HORSE EQUINE offers a variety of metal hay racks. These are hot-dip galvanized, making them significantly more robust than standard mesh-based systems.
| Comparison Criteria | Water Buckets | Automatic Waterers |
| Initial Setup | Relatively simple | Requires a water supply and specific installation conditions |
| Refilling | Relies on manual, timely replenishment | Automatically refills during normal operation |
| Monitoring Usage | Can be estimated based on the amount added vs. remaining water | Usually requires a recording system or other monitoring method |
| Cleaning | Can be removed for scrubbing | Depends on the design of the basin, drain, and valve housing |
| Common Issues | Tipping over, damaged mounting hardware, failure to refill on time | Clogging, leaks, slow refill rates, or freezing |
| Contingency Planning | Requires backup containers and a water supply | Backup buckets are still necessary during water outages or maintenance |
While automatic waterers reduce the labor involved in manual refilling, they still require regular inspection and cleaning.
The safety of equipment depends not only on the vessel itself but also on its overall condition following installation.
| Component | Key Inspection Areas | Conditions Requiring Attention |
| Edges and Welds | Burrs, cracks, sharp angles | Defects that could cause lacerations |
| Bolts and Brackets | Protruding ends, looseness, corrosion | Loosening, deformation, or exposed sharp points |
| Handles and Attachments | Gaps that could trap parts, snag points | Creation of hazardous gaps during use |
| Mesh Bags and Ropes | Holes, loops, excess rope, sagging | Loosening or potential for limb entanglement |
| Tilting/Flip-style Feeding Mechanisms | Hinges, pinch points, locking mechanisms | Failure to close securely or unintended opening |
| Automatic Waterer Covers | Security of attachment, exposure of internal components | Missing, loose, or damaged covers |
| Water Pipes and Electrical Wiring | Signs of chewing, impact, leaks, and protective shielding | Damage, water leaks, or electrical irregularities |
Heated watering equipment must be installed according to the specific model, and any electrical issues must be addressed by qualified personnel. Before disassembling or cleaning equipment that contains live electrical components, follow the manufacturer’s instructions to shut off and isolate the power source, and ensure an alternative water supply is provided for the horses.
If a horse suddenly avoids a heated waterer it previously used without issue, investigate potential problems with water quality, the equipment itself, or the electrical system; do not attempt to "test" the situation by forcing the horse to approach the unit.
Horses should have continuous access to clean, fresh water.
When using buckets:
You can track the amount of water added, the amount remaining, and any instances of significant spilling or tipping. Note that these figures are estimates and should not be treated as precise intake measurements.
When using automatic waterers:
Some units can be equipped with flow meters; however, water passing through the valve may also be used for cleaning, overflow, or wasted by the horse playing in the water. Records should account for these factors to avoid misattributing the total flow volume to actual consumption.
Cleaning is primarily intended to remove leftover feed, debris, and other deposits, while disinfection—performed after cleaning—addresses potential pathogen risks in accordance with product specifications.
The following procedure is recommended:
1. Relocate horses and provide an alternative water source. Ensure horses do not come into contact with cleaning agents or disassembled equipment during the process.
2. Empty the contents. Dispose of leftover feed and wastewater according to the stable’s established management protocols.
3. Scrub all surfaces, paying special attention to water lines, corners, the undersides of rims, and drainage areas.
4. Rinse away all debris and cleaning agents.
5. If disinfection is required, follow the instructions on the product label. Verify compatibility with the materials, the correct dilution ratio, the required contact time, and any rinsing requirements for surfaces that will come into contact with feed or drinking water.
6. Reassemble and inspect. Ensure that all containers, drain plugs, covers, and latches are properly repositioned and secured.
7. Verify functionality before returning to use. Fill water containers with fresh water; for automatic waterers, confirm that the refill mechanism and the shut-off function are both operating correctly.
Persistent dampness beneath a waterer may stem from valve leaks, pipe joint issues, splashing, or runoff from cleaning. Simply adding more bedding may merely mask an ongoing leak.
After addressing any leaks, inspect the flooring—not just the water container itself—for the following:
• Are there lingering water marks along the base of the walls?
• Do the seams between floor mats repeatedly become damp?
• Have depressions, puddles, or slippery areas formed?
• Are horses carrying feed over to the waterer to soak it?
• Is wastewater from cleaning flowing into the resting area?
For stable flooring solutions, consider the HopeHorse rubber stall mat. While the product features a textured surface and a grooved underside, effective use still requires a stable subfloor, proper installation, and regular cleaning; rubber mats are not a substitute for repairing leaks.
What is the recommended distance between a concentrate (grain) feeder and a waterer?
There is no universal distance applicable to all stables. The layout should prevent feed from easily falling into the water supply, while still allowing sufficient space for horses to move around and for staff to perform cleaning tasks.
Are automatic waterers more hygienic than buckets?
You cannot judge based solely on the automatic refilling feature. Hygiene depends on the design, frequency of cleaning, water quality, and maintenance.
Can stable water buckets simply be placed on the ground?
Standard containers are prone to being knocked over, stepped into, or contaminated. You should use secure mounting solutions appropriate for the intended purpose; specialized ground-level watering equipment is not the same as a bucket left haphazardly on the floor.
Is it safer to hang a hay net as high as possible?
No. Hanging it too high can negatively affect the horse's natural feeding posture, while hanging it too low may increase the risk of entanglement. The height should be determined based on the product’s specifications, the horse’s behavior, and the condition of the net once it is nearly empty.
Does the presence of water in a trough mean the equipment is functioning correctly?
Not necessarily. You must verify that the refilling mechanism works, the water supply can be shut off, and the water is actually accessible to the horse; otherwise, stagnant or residual water might mask a malfunction.
Can you simply add fresh feed on top of what remains from the previous meal?
First, check the condition of the leftover feed and observe any changes in the horse's eating habits. Any feed that is damp, contaminated, or spoiled must be removed—never simply covered up with new feed.
