Why do horse stalls remain damp even after rubber mats are installed? Why has a depression reappeared at the entrance shortly after the floor was leveled? Why does water still pool after cleaning, even though a drain has been installed?
These issues often involve the entire flooring system: external water sources, the underlying soil, the load-bearing base layer, surface materials, drainage paths, and daily bedding management.
When designing horse stall flooring and drainage, one should first determine where water originates and where it ultimately flows before selecting flooring materials.
An ideal stall floor provides stable support, adequate traction, and comfortable resting conditions, while also allowing staff to easily remove wet bedding, inspect seams, and repair localized damage.
"Smoothness" and "levelness" regarding stall floors are two distinct concepts:
• Smoothness: The absence of localized potholes, bumps, curled edges, or abrupt changes in elevation.
• Levelness: Different points sit at the same elevation.
• Drainage Slope: A continuous, controlled change in elevation designed to direct water to a specific location.
A floor can be smooth while incorporating a designed slope; alternatively, it can be nearly level—as required by certain systems—relying primarily on bedding to absorb urine.

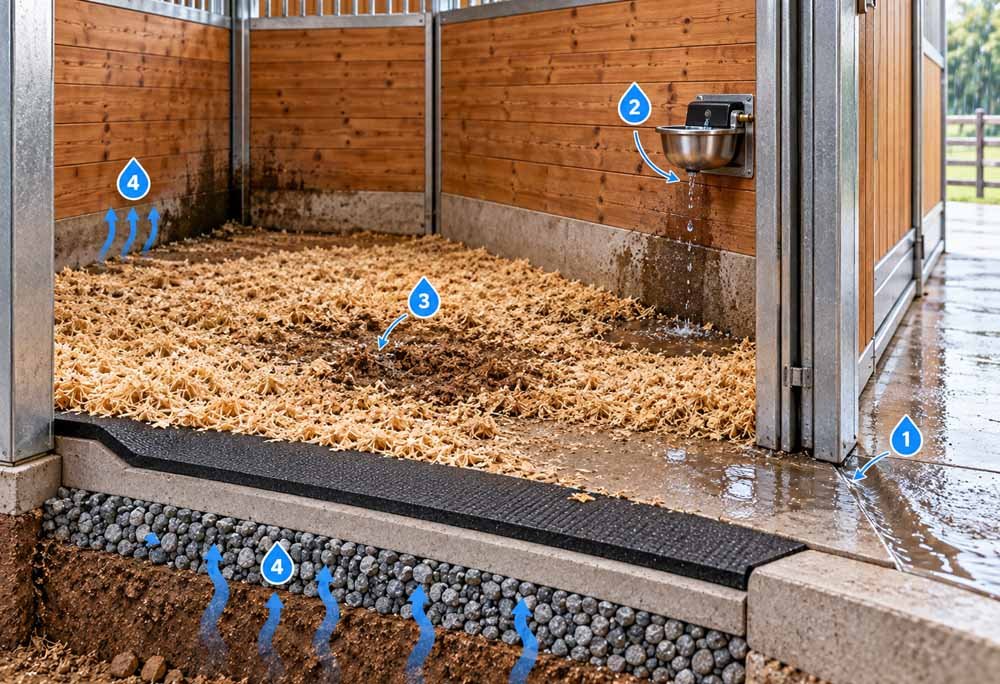

Before purchasing floor mats or excavating drainage channels, it is advisable to record when, where, and over what area the dampness occurs.
If dampness appears at the entrance or near exterior walls after rain, the cause may be surface runoff, downspout discharge, or roof leaks; prioritize inspecting the exterior ground slope, eaves, gutters, and the elevation of the entrance.
If the area beneath the waterer remains consistently damp, the cause could be a leaking connection, valve overflow, or splashing; prioritize inspecting the plumbing lines, mounting hardware, and the operation of the water bowl.
If a specific area becomes damp after the horse occupies the stall, it may be due to an accumulation of urine and wet bedding; check the cleaning frequency, the absorbency of the bedding, and the condition of the bedding seams.
If the stable is not yet occupied and significant dampness appears while it is vacant, the cause could be groundwater, capillary rise, or condensation. Please prioritize inspecting subsurface conditions, damp marks at wall corners, and ventilation.
These signs only help narrow down the possibilities; they do not conclusively prove the cause on their own.
For example, water found beneath the flooring could result from urine seeping through the seams or from dampness in the sub-base itself.
If rainwater continuously flows toward the stable, simply replacing the flooring is unlikely to solve the dampness problem.
When inspecting the building's surroundings, pay attention to the following:
Whether roof runoff is directed to an appropriate location via gutters and downpipes;
Whether the outdoor ground surface directs water toward the doorway or the building's foundation;
Whether outdoor paving—added later—has raised the ground level above that of the interior;
Whether material stockpiles, vehicle ruts, or clogged ditches have altered the original water flow paths;
Whether drainage outlets allow backflow during heavy rain.
For new stables, determine the elevation difference between the interior and exterior based on site grading, groundwater levels, and local rainfall patterns.
When renovating existing stables, consider thresholds, accessibility, and building foundations to avoid creating new tripping hazards by simply raising the floor level.
When selecting materials, compare factors such as structural stability, cleaning methods, and long-term maintenance requirements.
While compacted earth or clay floors are relatively easy to patch locally, be aware that they soften when wet, are prone to being dug up or developing depressions, and are difficult to clean.
Compacted stone dust or graded fine aggregate surfaces provide a relatively stable finish, but consider the material composition, compaction quality, and actual drainage capacity.
Concrete sub-bases are durable and facilitate cleaning and elevation control; however, the surface is hard, so a comfort layer or bedding is required, and liquid management must be addressed.
Rubber stable mats provide a resilient surface and make daily manure removal easier, but watch out for sub-base settlement, mat shifting, seam issues, and moisture accumulation underneath.
If a grid stabilization system is chosen, the grid and infill work together to stabilize the surface; however, the product's specific requirements regarding infill, the base layer, and installation must be met.
When selecting flooring materials, consider the following three questions:
Will daily maintenance primarily involve manure removal and bedding replacement, or will frequent wet cleaning be required?
Are you willing to perform periodic leveling, material replenishment, or inspections that require removing the mats?
Does the site have the appropriate base layer and drainage conditions for the chosen system?
The answers to these questions are often more valuable than simply comparing the price per square meter.
Flexible mats are influenced by the supporting surface beneath them. If the base layer contains voids, soft spots, or protruding stones, simply laying the mats over them will not eliminate these issues.
Remove unstable materials
Before construction, identify old bedding, humus-rich soil, loose backfill, and weak areas that have been saturated for long periods. New mats should not be laid directly over these materials.
Distinguish between the load-bearing layer and the drainage layer
Materials used for compacted support serve a different function than those used for drainage.
The fact that a certain type of crushed stone can be compacted firmly does not automatically mean it has good permeability; conversely, loose material with good drainage properties may not be suitable for directly supporting a specific rubber mat. Material gradation, layering, and thickness must be coordinated with the entire system.
Inspect the entire supporting surface
It is recommended to establish an inspection milestone before laying the mats: record elevations, check for soft spots, use a long straightedge to check levels in multiple directions, and take photographs for documentation.
If a surface drainage approach is used, extension materials from Pennsylvania State University suggest a gentle slope of approximately 1.5%–2%, while also advising against excessively steep slopes.
Reference: Penn State Guidelines on Stall Flooring and Drainage
The slope calculation formula is:
Elevation difference = Horizontal distance × Slope
For example, assuming a drainage distance of 3.6 meters and a design slope of 1.5%, the elevation difference between the two ends is 54 mm.
Actual design must also verify:
Whether water flow can effectively reach the collection point;
How the stall entrance connects to adjacent passageways;
Whether the flooring system permits this type of installation;
Whether subsequent settling might create localized reverse slopes (ponding areas);
Suitability for areas where horses stand, lie down, and rise.

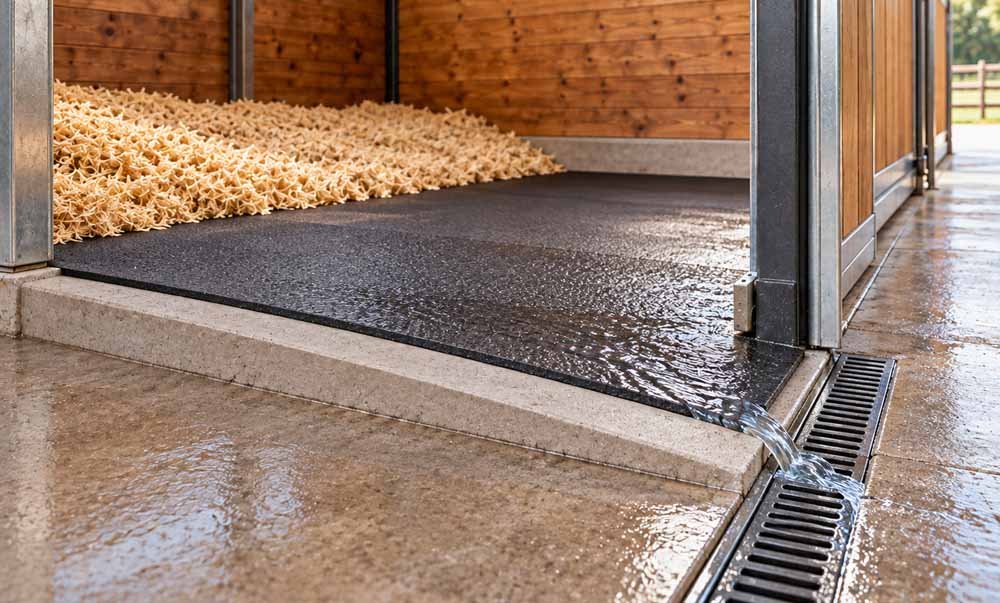

If daily management relies primarily on bedding absorption and manure removal, the priority is to prevent external water ingress, promptly remove wet bedding, and maintain the stability of the floor and matting system.
Hidden drains that are difficult to clean should not be added simply to make the facility "look more professional."
If wet washing and wastewater collection are required, the slope direction, collection points, drainage capacity, and maintenance access must be designed comprehensively to prevent water from flowing through adjacent stalls or main walkways.
Drainage outlets should also be checked for:
Whether the cover is secure and rated for the actual load;
Whether the grate openings pose a risk of trapping hooves or horseshoes;
Ease of removing bedding and accumulated debris;
Risk of backflow in the event of a blockage;
Final collection and treatment methods for wastewater.
Wastewater containing urine, manure, or cleaning agents must be integrated into the facility's wastewater management plan.
The destination of the effluent must be determined during the design phase; simply directing water "out of the stall" is not a complete drainage solution.
Compatibility with the sub-base
Verify the types of sub-base suitable for the product, as well as requirements for full-surface installation, edge restraint, or specific jointing methods.
Wet-condition usage and cleaning requirements
A textured surface does not guarantee slip resistance under all types of contamination. Consult the supplier regarding intended use scenarios, cleaning methods, and available test data.
Consider the actual function of the underside structure
Underside grooves only function effectively when aligned with the installation direction, the space beneath, and the drainage path.
The grooves themselves do not create a drainage outlet, nor do they guarantee that urine will successfully pass through the mat body to drain away.

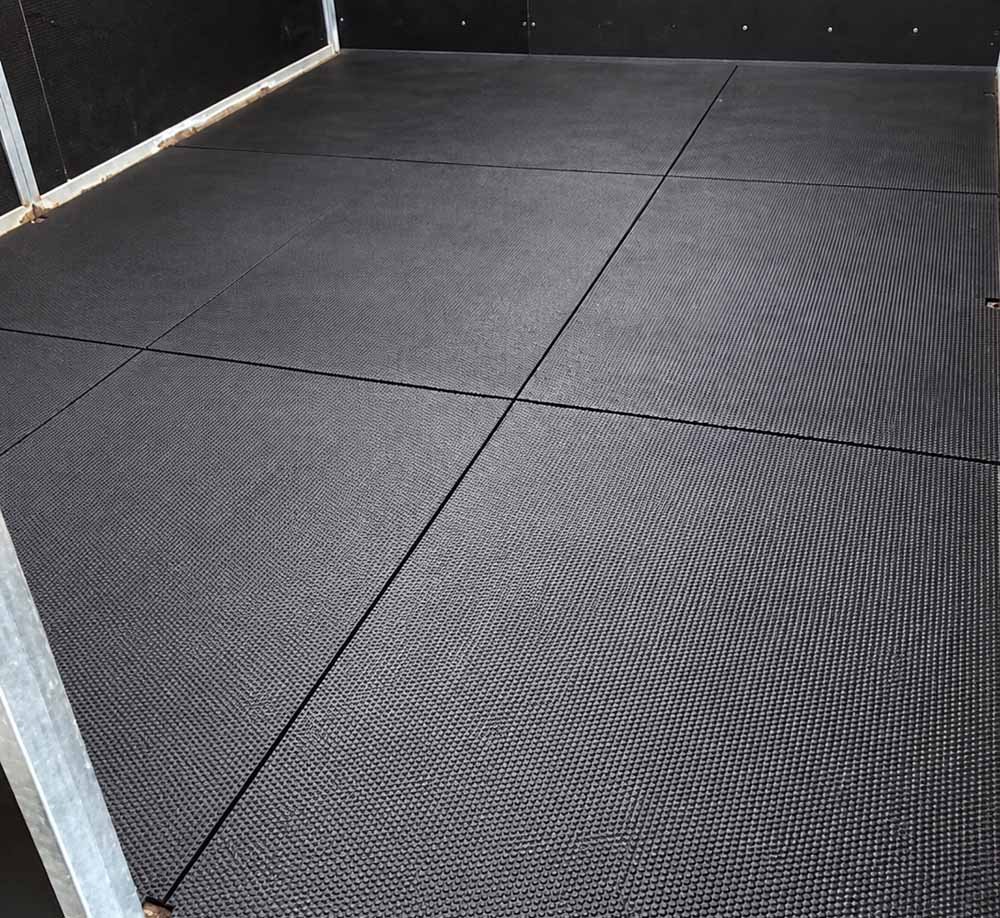

HopeHorse stable rubber mats feature a textured surface, a grooved underside, and options for 12mm or 17mm thickness.
When purchasing, confirm specifications and installation methods based on the condition of the subfloor and specific usage requirements.
Pay attention to cutting, seams, and future removal/reinstallation
Create a layout plan before installation to minimize the need for piecing together small, unnecessary fragments. Pay special attention to edge stability at doorways and areas prone to frequent pawing or digging.
A common oversight during stable renovations is failing to consider how raising the floor level affects doors and partitions.
After completing the subfloor, matting, and bedding setup, check the following:
Can the door leaf still open properly?
Is there an abrupt height difference at the doorway?
Does the relationship between the partition base and the finished floor surface meet design specifications?
Can manure removal tools and wheelbarrows pass through smoothly?
Is water being obstructed by a new threshold or edge structure?
If you are outfitting the entire stable, coordinate dimensions in advance with HopeHorse stable door and equipment; providing the finished floor elevation to them helps minimize the need for post-installation rework.
Rubber mats serve as the contact surface and provide a degree of comfort, whereas bedding absorbs urine and creates a suitable resting surface. The two cannot simply replace one another.
Determine the quantity of bedding based on material absorbency, horse behavior, duration of occupancy, and cleaning frequency. A more practical approach than simply applying a fixed thickness is to check:
Whether the bottom layer is noticeably damp during cleaning;
Whether the area where horses lie down remains clean and dry;
Whether wet areas are continuously expanding;
Whether staff are merely adding fresh bedding without removing the old, wet material. Proper ventilation is also essential. Stables require ventilation to expel moisture and exchange air.
When comparing options, it is recommended to calculate total costs over the same time period:
Total Cost = Site and sub-base preparation + Flooring materials and installation + Bedding + Cleaning labor + Maintenance and replacement + Downtime arrangements
Do not estimate savings percentages based solely on the assumption that a specific mat might "save on bedding" without supporting on-site data.
For renovations with limited budgets, implementation can be phased according to specific issues:
Address water leaks, backflow, and obviously unsafe flooring areas.
Repair weak sub-bases and areas with recurring water pooling.
Install a flooring system suited to the site conditions.
Optimize bedding and cleaning methods based on actual usage records.
If planning to renovate multiple stalls, consider testing one representative stall first—recording bedding consumption, cleaning time, changes in wet areas, and maintenance needs—before deciding whether to expand the project.
Can rubber mats be laid directly onto a dirt floor?
It depends on the product specifications and the stability of the existing ground. Surfaces that are soft, contain organic matter, or are prone to deformation when wet should be treated first. Mats should not be used to cover up a weak sub-base.
Must stable floors have a 2% slope?
Not necessarily. While surface drainage solutions may reference professional slope standards, some mat systems that rely on bedding management do not require a slope. The requirement should be determined based on the overall system design.
Is faster drainage always better for the stable?
Requirements for structural support, slip resistance, ease of cleaning, and wastewater management must also be met. Focusing solely on rapid drainage can lead to issues such as a damp sub-base and cleaning difficulties.
How often do the mats need to be removed for cleaning?
Follow the product's maintenance guidelines while also considering factors such as odors, contamination at the seams, water leakage, and mat shifting. Not all systems are suitable for the same removal and cleaning schedule.
