An equestrian arena is far more than just a space for riding and training. It directly affects a horse's athletic performance, day-to-day comfort, safety, and long-term soundness.
A well-designed and properly maintained horse riding arena provides stable support, controlled cushioning, and reliable traction, allowing horses to move more naturally and safely during flatwork, turning, take-off, and landing.
Whether for daily schooling, professional training, or competition use, the quality of the arena footing plays a critical role in both performance and injury prevention.
An ideal arena surface should have a controlled degree of deformation so it can absorb part of the impact energy, while still maintaining sufficient rebound and support.
This balance helps horses maintain grip and stability when pushing off and landing, reducing the risk of slipping, imbalance, and movement-related injuries.
By contrast, poor-quality footing can quickly become a hidden risk to both the horse's health and training results.
· Overly hard ground creates excessive concussion and increases stress on the limbs, joints, ligaments, and back.
· Overly soft or deep footing causes the horse to sink too much into the surface, increasing strain on tendons and soft tissues while reducing movement efficiency.
· Poor drainage can lead to standing water, mud, and slippery areas after rain, interrupting regular riding and training schedules.
· Uneven footing can affect rhythm, balance, and stride quality, and in severe cases may contribute to injury.
For this reason, investing in a high-quality equestrian arena surface system is essential for private barns, training arenas, riding schools, equestrian centers, and competition venues.
Before building an arena, the first step is to clearly define its purpose. Different equestrian disciplines, training goals, and levels of use require different arena sizes, footing systems, and surface materials.
For example:
· If the arena is mainly for young horse training, groundwork, or daily schooling, a round pen is often the preferred option.
· If the arena is intended for dressage training or competition preparation, a standard 20 m × 60 m dressage arena or 20 m × 40 m arena is typically required.
· If the arena will be used for show jumping, it generally needs more space to accommodate course design, approach lines, and landing areas.
· If the goal is a multi-purpose riding arena, the design must balance the needs of different riding disciplines.
Clearly identifying the intended use of the arena makes it easier to determine the right layout, structure, and arena footing materials from the beginning.
Arena dimensions do not just affect usability. They also influence riding quality, training efficiency, and safety.
If an arena is too small, it can restrict the horse's movement and limit training patterns or course design. If the layout is poorly planned, it may reduce the effectiveness of lessons, schooling sessions, or competition preparation.
Common types of equestrian arenas include:

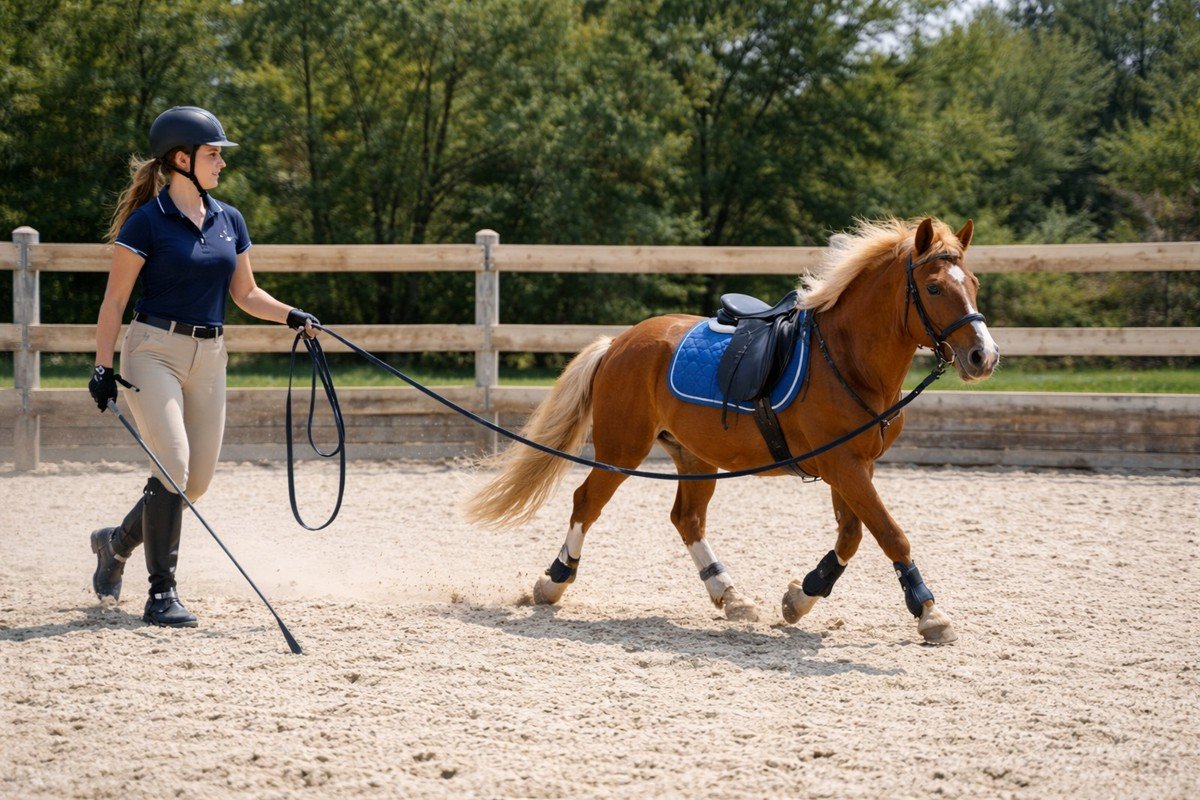

A round pen is commonly used for young horse training, groundwork, lunging, relaxation exercises, and basic obedience work. Its circular shape helps trainers control the horse's line of movement more effectively and is ideal for single-horse daily training.

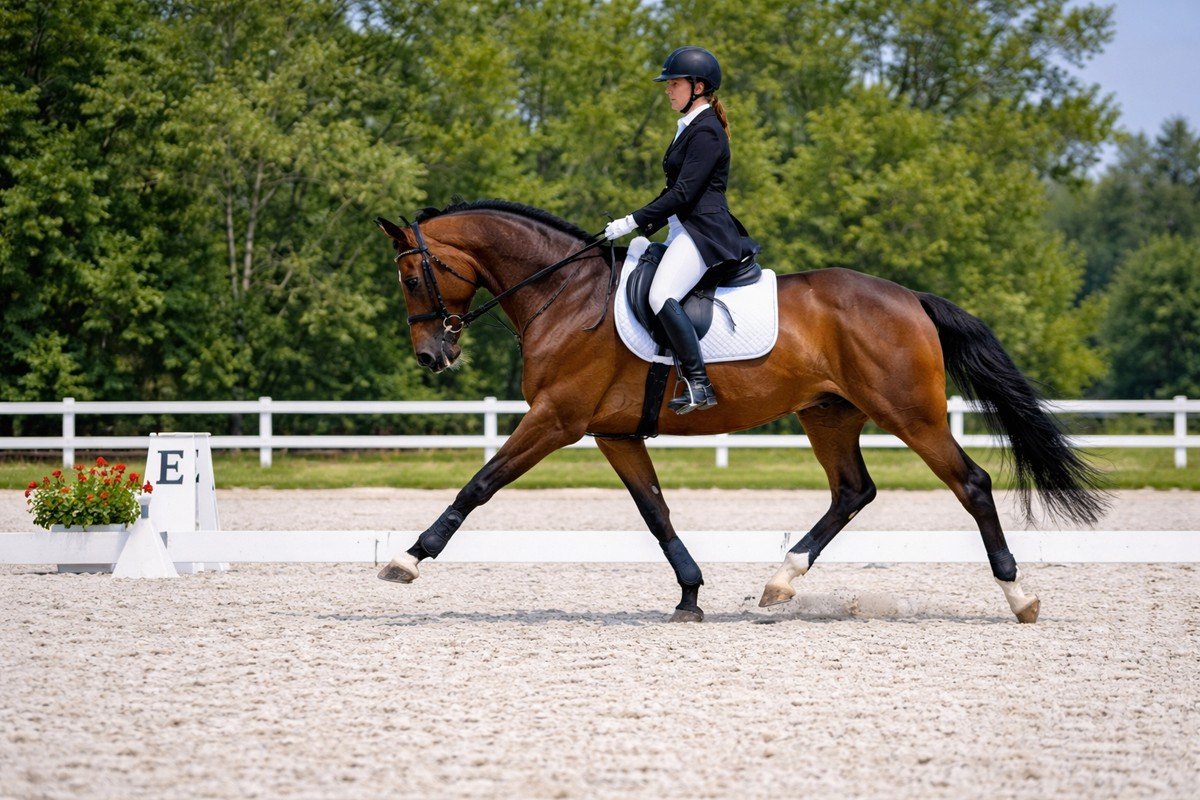

Dressage Arena
A dressage arena is usually built in standard dimensions:
· 20 m × 40 m for basic training and some lower-level tests
· 20 m × 60 m for standard dressage competition and more advanced schooling
Dressage surfaces demand a high level of flatness, consistency, and elastic response, because the discipline relies on rhythm, accuracy, straightness, and balance.

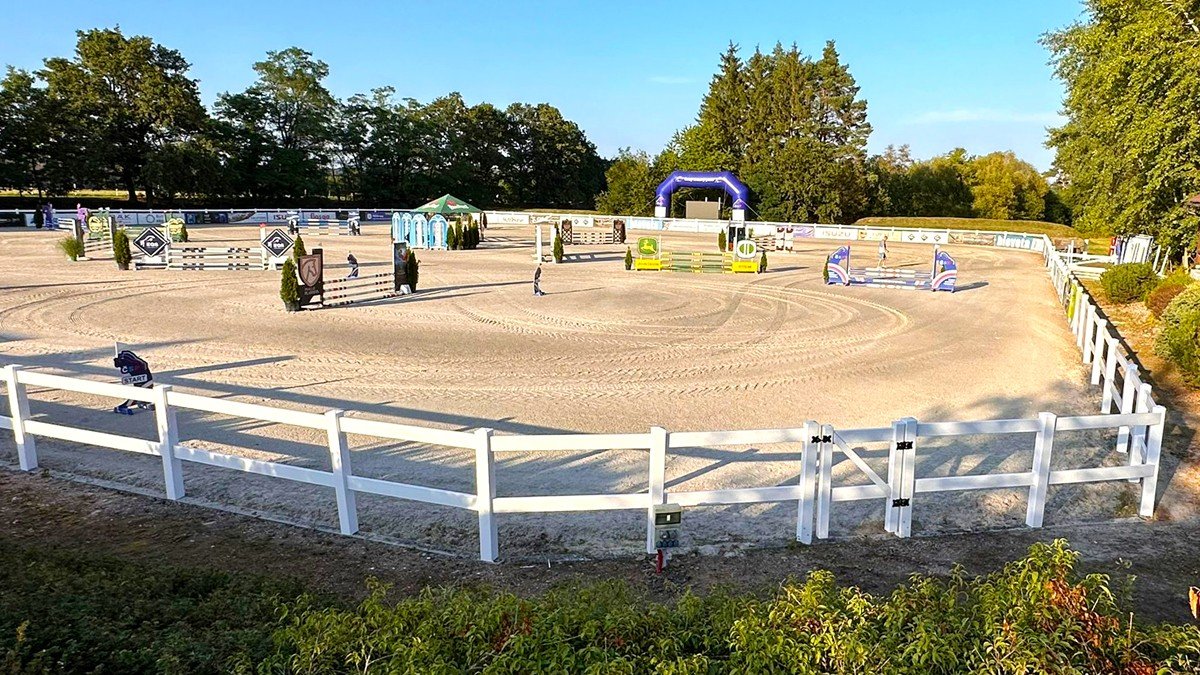

A show jumping arena requires more space to accommodate fences, turning distances, and take-off and landing zones. These arenas typically require:
· sufficient overall length and width
· dependable traction
· effective shock absorption
· strong drainage and surface levelling
· the ability to handle repeated concentrated impact from jumping activity
Multi-Purpose Riding Arena
Many equestrian facilities prefer a multi-purpose arena that can be used for flatwork, jumping practice, and daily riding. In this case, the arena must deliver balanced performance across several riding applications, which places higher demands on the entire footing system.
A quality horse arena surface is made up of several functional layers working together. It is not simply a matter of spreading sand over the ground.
In most cases, an equestrian arena consists of three main structural layers:
· Base Layer
· Cushion Layer
· Top Layer / Riding Surface
Together, these layers determine the arena's structural stability, drainage capacity, shock absorption, and overall riding feel.
The base layer is the foundation of the entire arena. A good base must be:
· structurally stable
· evenly compacted
· level across the full surface
· well-drained
· resistant to settlement or localized collapse over time
Common materials used in the base layer include:
· crushed stone
· compacted clay
· graded aggregate
· drainage systems or geotextile membranes where required
Depending on soil conditions and project requirements, the base is often installed at a depth of approximately 10–15 cm or more.
If the base is weak or poorly constructed, even a premium riding surface will eventually develop problems such as standing water, uneven footing depth, settlement, and reduced service life. A strong and well-drained base is essential to the long-term performance of any equestrian arena footing system.
The cushion layer sits above the base and is responsible for absorbing impact, distributing pressure, and supporting the top surface.
This layer is typically made of sand or sand blends, and it is one of the most important components of the arena. A well-designed cushion layer can:
· reduce impact during landing and movement
· improve surface uniformity
· enhance ride feel
· help the top layer maintain more consistent performance
The quality of the sand is especially important. Sand used in horse riding arenas should ideally have the following characteristics:
· hard and durable particles
· relatively consistent particle size
· resistance to breaking down into powder under hoof impact
· long-term ability to maintain grip and structure
In many cases, silica sand is recommended because it is durable, angular, and more resistant to wear. These qualities help preserve traction and improve the long-term stability of the footing.
The top layer, also known as the riding surface, is the part that comes into direct contact with the horse's hoof. It has a major effect on traction, cushioning, dust control, flexibility, and overall ride quality.
Depending on budget, riding discipline, climate, and maintenance capacity, the top layer may include different material combinations.

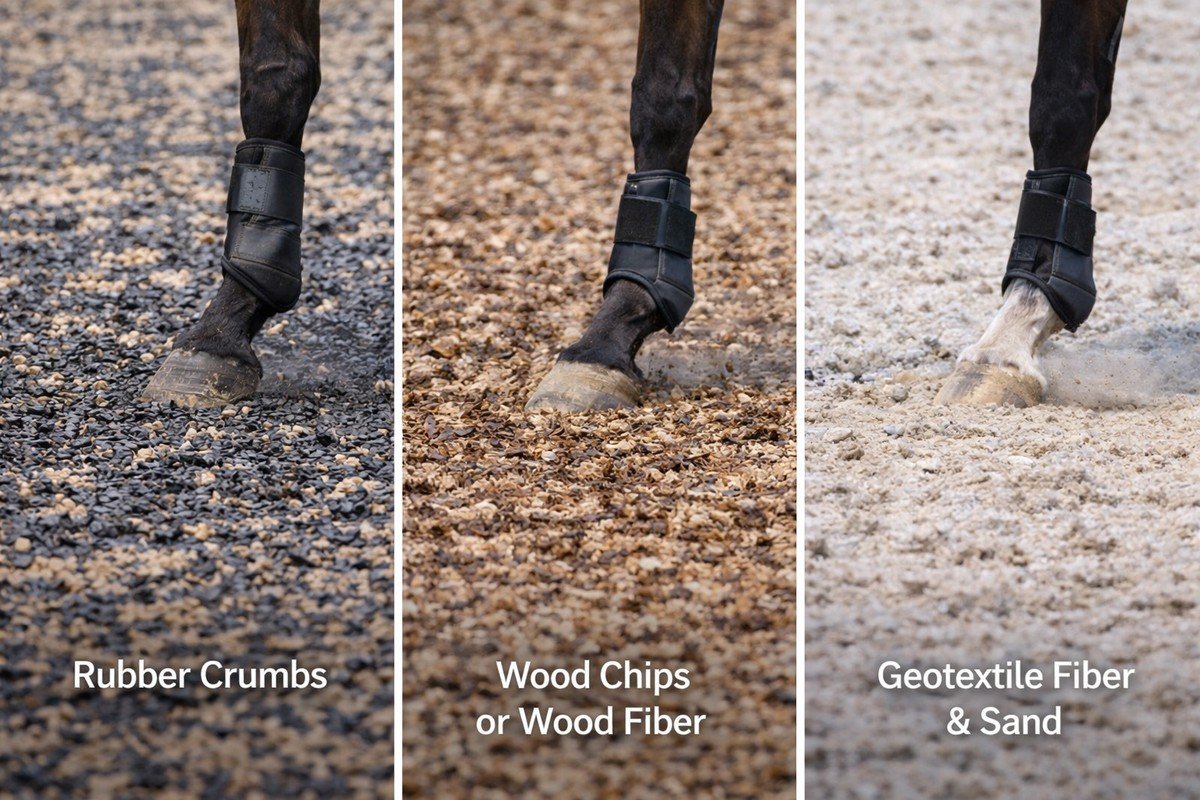

Common top-layer additives and materials include:
Rubber
Rubber arena additives provide effective shock absorption and can improve surface elasticity. They help create a more forgiving ride, reduce concussion, and in some systems may also reduce dust.
Wood Chips or Wood Fiber
Wood fiber footing or wood-based materials can add useful cushioning and create a softer underfoot feel. However, they break down more easily over time, and in wet conditions they may become slippery if not managed properly.
Geotextile fiber arena footing is often used to improve cohesion, flexibility, and grip. When mixed with sand, it can help create a more stable and performance-oriented riding surface for both training and competition use.
There is no single footing formula that works best for every arena. The ideal combination depends on the arena’s intended use, climate, traffic level, maintenance routine, and budget.
Even the best equestrian arena footing will quickly lose performance if it is not maintained correctly. Frequent riding, jumping, turning, and changing weather conditions all contribute to wear, compaction, surface displacement, and unevenness.
Routine maintenance should include:
1) Harrowing and Levelling

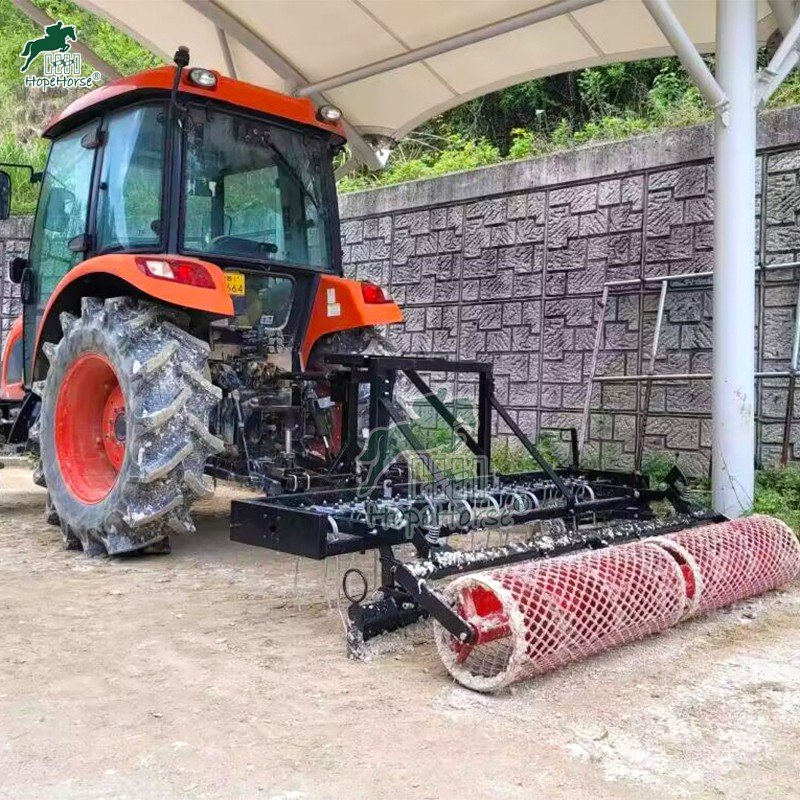

Using the right arena grooming equipment like arena leveller to regularly harrow and level the surface helps prevent excessive compaction and keeps the material evenly distributed.
2) Moisture Management
Appropriate watering can reduce dust and improve surface cohesion. However, too much water can make the arena overly wet, so moisture levels should be adjusted according to weather and usage.
3) Drainage Inspection
Check regularly for low spots, blocked drainage areas, or signs of base settlement. Small problems should be corrected early before they develop into major repairs.
4) Replenishing Footing Materials
Over time, some top-layer materials may wear out, decompose, or lose performance. Replenishing footing when necessary helps maintain consistent ride quality.
A good maintenance program is essential for preserving both the performance and lifespan of the arena.
A good horse arena does more than improve daily riding. It is also a long-term investment in horse welfare, performance, safety, and operational efficiency.
For horse owners, trainers, riding schools, and equestrian centers, a high-quality arena means:
· a safer training environment
· more consistent riding performance
· lower risk of injury
· a better rider and client experience
· longer service life for the arena
· reduced long-term repair and maintenance costs
In the long run, building a stable, properly engineered, and easy-to-maintain equestrian arena surface is far more valuable than repeatedly repairing a poor-quality footing system.
Building the best equestrian arena is not simply about choosing one type of footing material. It requires a complete and well-planned system that includes purpose-driven design, the right dimensions, a stable base, a quality cushion layer, a suitable riding surface, effective drainage, and ongoing maintenance.
Only when all of these elements work together can an arena provide the safety, comfort, and performance that horses and riders truly need.
A well-built arena is not just part of the facility—it is a long-term foundation for horse health, rider confidence, and better training results.
