The horse wash stall (or wash bay) is a frequently used functional area in the stable. Washing off mud and sand, rinsing away sweat, and grooming the coat all require a space that is convenient for handlers and allows for efficient drainage.
When planning a wash stall, priority should be given to the flooring, drainage, and workspace. These fundamental elements determine the ease of daily use and the amount of time required for future cleaning and maintenance.
The ideal location allows easy access for horses coming from the exercise arena or stables without blocking main passageways.
Key considerations include:
Will horses waiting to be washed block the aisle?
Do handlers need to step away from the horse or step over hoses to access tools?
Is there a risk of wash water flowing into nearby dry areas?
Dimensions should be determined based on horse size, the number of handlers, and the space occupied by equipment. A standard reference size is at least 10 × 12 feet (approx. 3.05 × 3.66 meters); high-end or commercial stables might consider 12 × 14 feet (approx. 3.66 × 4.27 meters) or larger. More important than the gross footprint is the actual usable space remaining after equipment installation. Wall paneling, support posts, storage racks, and plumbing fixtures all take up space.
Before construction, it is recommended to mark the boundaries and equipment locations on the floor with tape and have the staff who will actually wash the horses simulate the workflow. Check for ease of movement on both sides, ensure the entrance is unobstructed, and verify that handlers can exit quickly. This simple step helps identify congestion issues that might not be apparent on blueprints.
When planning the wash stall, consider both the floor slope and the cleaning method. An appropriate slope facilitates drainage; a common design standard for wash areas involves a slope of approximately 1%–2% leading to the drain. Bedding materials and stable debris can easily clog drainage systems.
When selecting a drainage solution, focus on the following:
Whether the drain location interferes with the horse's stance or staff operations.
Whether hair, mud, and debris can be captured before entering the piping.
Ease of cleaning without the need to move heavy equipment.
How wash-down wastewater is collected and treated, and whether it is separated from clean rainwater runoff.
My recommendation for final inspection: Conduct a water flow test based on actual usage volume after the equipment and floor mats are installed. Observe whether water pools in areas far from the drain, in corners, or at mat seams, and check if water flows out of the entrance.
Wash-stall flooring must remain safe and functional in the presence of water, mud, and grooming products. The floor texture needs to balance traction with ease of cleaning. If you plan to install rubber mats, consider our rubber mat products.
Wash areas should ideally feature smooth wall surfaces or enclosures. When purchasing partitions, pay close attention to welds, bolt ends, panel edges, and the bases of upright posts. When comparing quotes, request specifications regarding frame material, surface treatment, panel dimensions, and fastener details; this makes it easier to assess the actual differences between quotes.

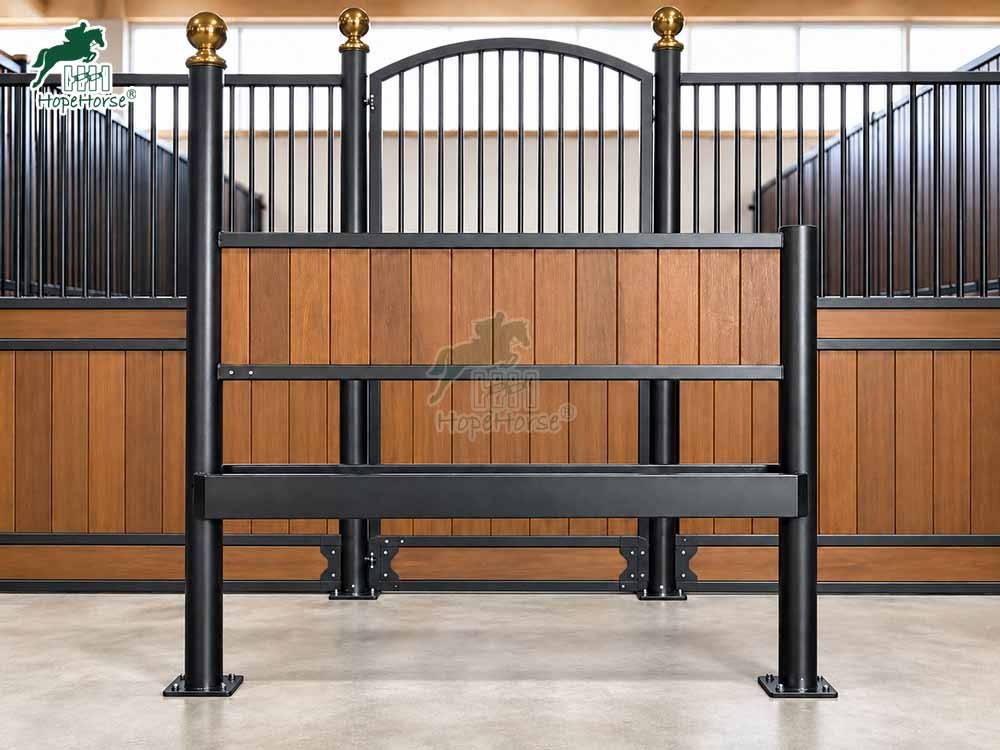

HOPE HORSE EQUINE offers various styles of horse wash-stall enclosures made from sturdy, durable steel. They feature hot-dip galvanizing and powder coating to prevent rust, making them highly suitable for humid environments.
Contact us for more details.
When washing a horse, be mindful of issues like long hoses getting stepped on or tangled. I recommend simulating a full wash-down procedure before finalizing equipment placement: picking up the spray nozzle, moving to both sides, accessing grooming products, and returning tools to their place. Check if the hose length is sufficient, if it drags on the ground, and if the retraction path crosses the area where the horse stands.
Storage racks should also be arranged according to frequency of use. Frequently used items should be easily accessible, while backup supplies can be stored outside the wash area to prevent shelving from encroaching on the workspace.
We offer a wash stall partition that includes built-in storage for grooming products; please message us if you are interested.
Side lighting illuminates a horse's legs and belly better than a single bright fixture mounted directly overhead. Fixtures, switches, and outlets must be moisture-resistant and installed by professionals.
Key considerations:
Illuminate both sides of the horse.
Use moisture-resistant fixtures with protective covers.
Keep outlets away from areas prone to water spray.
Provide ground-fault protection as required.
Do not resort to using portable household lamps or heaters to compensate for a poorly designed wash area.
Hot water aids in winter cleaning and improves comfort, but heaters, piping, and drains must be protected against freezing and impact. Mixing valves can be used to limit water temperature and prevent scalding.
When requesting quotes for a wash stall, break down the costs into categories: civil works, drainage, flooring, partitions, water supply, equipment installation, and ongoing maintenance. This helps identify whether a low-cost proposal has omitted essential items.
I recommend adding a frequently overlooked metric for comparison: the time required for cleanup after each use.
For example, if a design saves 5 minutes of cleanup time per use, and the stall is used 6 times a day for 300 days a year, the theoretical time savings would be:
5 × 6 × 300 ÷ 60 = 150 hours per year.
While this is a hypothetical calculation for comparison purposes, it illustrates a practical point: a design that is easy to clean and maintain may offer more value than simply minimizing the initial purchase price.
Before putting the facility into regular use, verify the following:
Operational space and exit routes remain unobstructed after equipment installation.
Water flows freely without significant pooling or overflowing into the aisle.
Floor mat edges are securely fastened, and seams and drains are easy to clean.
Walls, connectors, and equipment are free of protruding parts that could cause injury upon impact. The water hose covers the entire operating area and can be properly stowed away.
Storage facilities do not obstruct the movement of personnel.
Electrical installations have been verified by qualified personnel as suitable for the site's damp environment.
Finally, include the cleaning of drains, inspection of floor mats, and checking of connections in the routine maintenance records.
The true value of a wash-down area lies not merely in its appearance upon completion, but in the ease with which it can be kept clean, functional, and reliable during long-term use.
