A horse stable serves as the fundamental functional equine facility for a horse barn or horse shelter. When designing horse stables, the safety of both staff and horses should be the primary consideration.
The convenience of daily operations is closely related to proper horse care. Regardless of management style or requirements, a secure horse stable shares the same fundamental elements.
There are numerous options available for horse stable design features, with each choice affecting both functionality and cost expenditure.
The height of the horses and the amount of time they spend in the horse stable each day determine the size of the barn stable.
Larger horses require more space than smaller ponies, allowing them to turn, lie down, and stand up comfortably in the stable barn.
A 12-foot (approximately 3.6-meter) stable box is the standard size for horses weighing 1,000 pounds (about 453. 5 kilograms).
In practice, many stall stables are successfully built even with dimensions slightly smaller than these specifications, but a length of less than 3 meters is not recommended.
In general, the length of a indoor stable should be 1. 5 times the length of a horse. The longer the time spent in the stable or the more active the horses are, the larger the box stable needs to be.
If the stable houses both a mare and a foal, the partition panel between the two horse boxes can be removed.
The standard height of a stable partition wall is 8 feet (approximately 2.4 meters). The height must not be less than 7.5 feet (approximately 2.2 meters) to prevent the horse's leg from exceeding the wall when kicking backward.
Many horses can kick backward with a height of up to 7 feet (approximately 2.1 meters).
Although it is recommended that stable partition walls be 8 feet (approximately 2.4 meters) high and the entrance width be 4 feet (approximately 1.2 meters), these dimensions are not commonly used in stall barns.
The manufacturer typically specifies a height of just over 7 feet (approximately 2.1 meters), with door widths ranging from 3.5 feet (about 1 meter) to 3.75 feet (approximately 1.1 meters). This size represents the actual dimensions through which a horse can pass, and it is sufficient to ensure the safety of both rider and horse.
The ceiling height of a bedroom typically ranges from 10 feet (approximately 3 meters) to 12 feet (approximately 3.6 meters), with a minimum height of 8 feet (approximately 2.4 meters). A low ceiling not only impedes ventilation but also increases the risk of horses colliding with the ceiling on their heads. In fact, many stables feature open truss or rafters structures without ceilings.
Sliding and swing door designs are commonly used for stable doors, with various materials and structural configurations available.
The door length may correspond to the height of the horse entrance/exit, or adopt a Dutch-style design with two separate sections that open independently; alternatively, it could measure half or three-quarters of the entrance/exit dimensions—a configuration commonly used for wire mesh gates.
Sliding doors require fewer hardware components, such as durable hinges to prevent the door from sagging.
For sliding doors, in addition to the aforementioned guide rails, appropriate accessories are required to prevent the door from opening excessively wide and to ensure the lower section of the door does not derail when kicked by horses.
All doors and door frames shall be durable, equipped with safety latches, and free of sharp edges or protrusions. The door of the horse stable should be designed to open with one hand, providing convenience for daily use.
The position of the power plug should be out of reach for the horse; otherwise, it might become interested in learning how to operate it.
In Dutch stables, the design allows horses to potentially attempt to jump out of their box stalls.
Of course, there are other design approaches when creating stable doors—for example, allowing horses to lean out but preventing them from jumping out.
 |  |

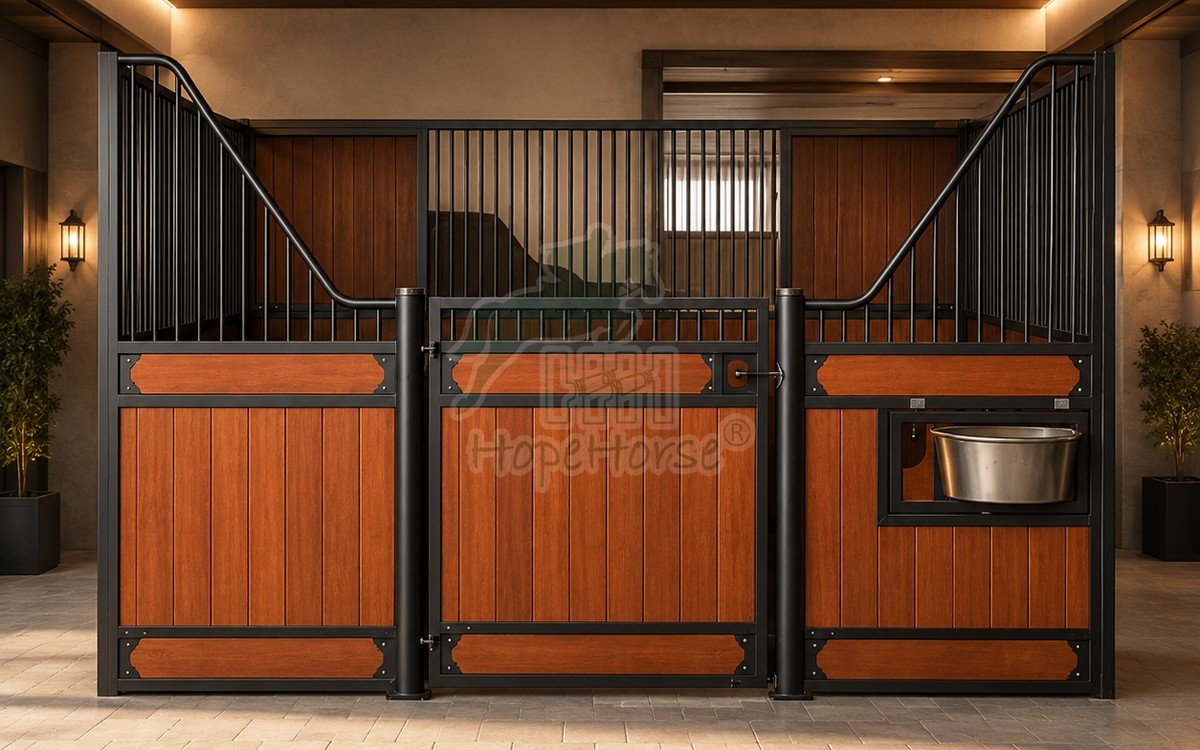

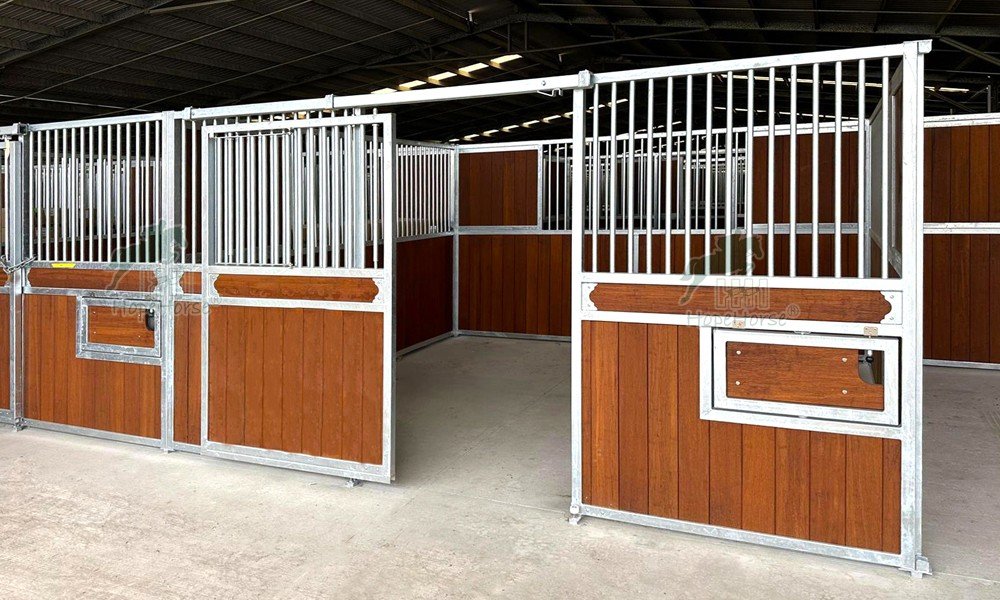

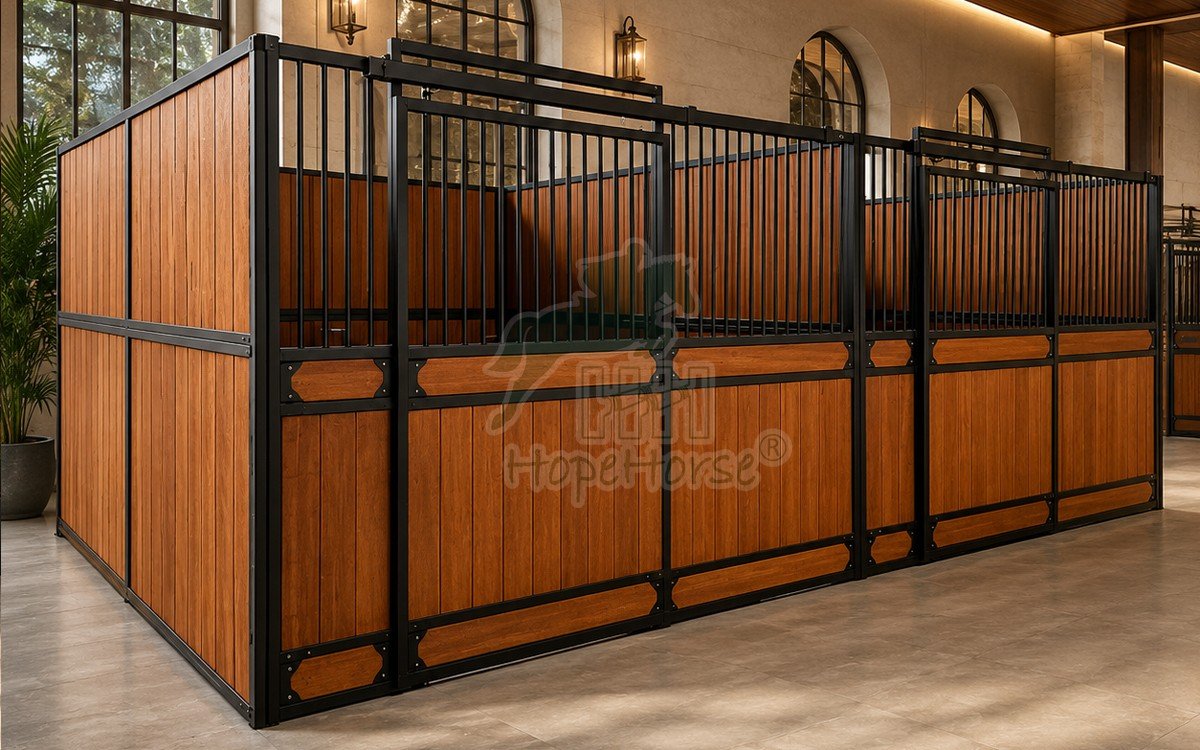

| Horse Stall with Hinged Door | Horse Stall with Sliding Door |
Lighting in the horse stable barn is crucial; proper lighting facilitates daily care and observation of the horses housed there.
Shaded areas and environments with poor lighting conditions not only increase the difficulty of stable cleaning tasks but also impair horse observation and care.
Regarding natural lighting, each stable should have at least approximately 0.4 square meters of barn window space.
Window screen design requirement: Horses cannot reach it. Two methods can meet the requirements: 1) The window height should be at least 2 meters above the ground; 2) Install sturdy guardrails.
CLICK HERE TO FIND HOPE HORSE WINDOW SOLUTIONS
Additionally, it is recommended to install the lights at the front or side of the horse stall barn to minimize the area affected by shadows.
When horses stand in front of the barn stall front, shadows cast by the lighting above the aisle can interfere with observing them. A single 100-watt incandescent bulb can solve this problem.
Rodents (including horses) may bite unprotected electrical wires, which can easily cause fires. Electrical wiring and related facilities should be kept as far away as possible from horses, children, and pets.
Relevant line installations should not be easily accessible to horses, with a minimum height above ground of 2.44 meters.
To further protect the relevant line installations, a shatterproof lampshade can be provided; additionally, all wiring in any area inaccessible to horses should be protected by metal or rigid plastic conduits.
Metal pipes can be used, but they tend to rust.
Each horse should have access to fresh air; opening the stables' windows promotes ventilation, thereby ensuring healthier respiration in the horses.
However, it is not recommended to store hay and bedding on the roof of a horse barn, not only because these materials pose fire hazards but also because hay and rice husks carry dust and allergens that impair air circulation.
The interior of the equestrian stable, including its hardware, must be smooth, sturdy, and free of protrusions.
Typical interior stable facilities include: water troughs/automatic drinking systems, feed barrels, rings for securing horses, as well as other horse equipment such as hay racks or hang rings for securing hay bags/packs, and toys.
When selecting equine stable facilities, it is essential to consider cost-effectiveness, durability, ease of replacement and cleaning—particularly for feed bins and water barrels.
Horses are exposed to these facilities daily; therefore, it is essential to select high-quality facilities that can be used for an extended period.
Install the material bucket and the water bucket in different locations within the horse stall barn. It's best to maintain a certain distance between the water bucket and the feed bucket.
If they're too close, the feed may spill into the water bucket while the horse is eating. Secure the material bucket and water bucket to the stable wall instead of placing them directly on the ground, as they may be knocked over by horses.
The height of the bucket should be above the horse's chest and level with its nose, ensuring the horse won't step into it while allowing comfortable drinking and feeding.
Requirements for the fixed barrel and water bucket fixtures: They must be smooth, free of gaps, and securely attached to the wall.
The loop hook and double-end buckle are ideal for wall mounting.
Regardless of whether the bucket is mounted on the wall, the hardware securing it must be safe, and the bucket should be easy to remove for regular cleaning.
Stables use either water barrels or automatic water dispensers, typically depending on cost considerations and the preferences of the facility managers.
The cost of purchasing and installing an automatic water bowl is higher than that of a traditional water bucket.
However, installing an automatic dispenser does not solve all problems; like with a bucket, the pipes must be checked daily to ensure they are clean, free from horse manure blockages, and that the water is fresh.
When drinking water, horses will consume more water if the water supply system is clean and well-maintained.
The installation location of the automatic water dispenser should follow the previous recommendations regarding the height of the water bucket and its relationship to the feed trough position.
Some machine models allow two stables to share a single water dispenser.
When selecting an automatic water dispenser, the following factors should be considered: the strength and maintenance requirements of materials in contact with horses, a smooth surface, the principle of automatic water replenishment, and ease of cleaning. Some waterers require horses to lower the water level before refilling, while others demand that horses open the valve with their noses—a task that can be challenging and even frightening for the animals.
Of course, the automatic water-filling mechanism could also be turned into a "toy," but if horses frequently open the valve, it may lead to flooding of the stable. In cold weather, it is essential to prevent water pipes from freezing and cracking by implementing proper pipeline protection measures.
The height of the horse-reining ring is typically equal to or greater than that of the horse's hip joint.
Install the ring on the side walls of the feed bucket and water bucket to securely hold horses during stable cleaning or grooming preparations.
Ensure the walls are sturdy enough to withstand the force of the horses.
There are various options for stable flooring in HOPE HORSE EQUINE, which should meet most requirements. Why most requirements rather than all? The following content will address your questions.
It is important to note that the occupants of the stable weigh up to 450 kilograms, which requires the floor to be highly durable.
The ground can attenuate the impact of certain forces (such as the weight of the horse), thereby reducing pressure on the horse's legs and alleviating hoof-related issues.
In addition, the ground must be slip-resistant to prevent injuries to horses, especially when standing up from a lying position. The smooth ground also limits the horse from lying down.
Ground materials should be selected for their low maintenance costs, but no single material can possess all the desired properties.
Soil surfaces possess "elasticity," but are not durable; concrete is durable, yet lacks "elasticity".

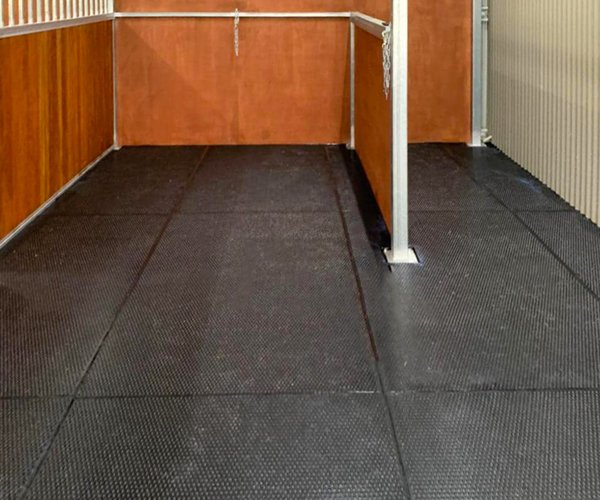

Laying rubber pads or thick cushioning materials on concrete and other hard ground surfaces can partially alleviate the issues caused by hardness.
Adequate padding can help prevent abrasions. Rubber pads and muddy surfaces can become slippery if wet.
 |  |
By considering the needs of horses and adhering to fundamental principles, you can provide a pleasant and safe stable environment.
Fortunately, there are several options for constructing a stable. For example, in a well-run equestrian club, you can observe a variety of stable doors and floor materials.
