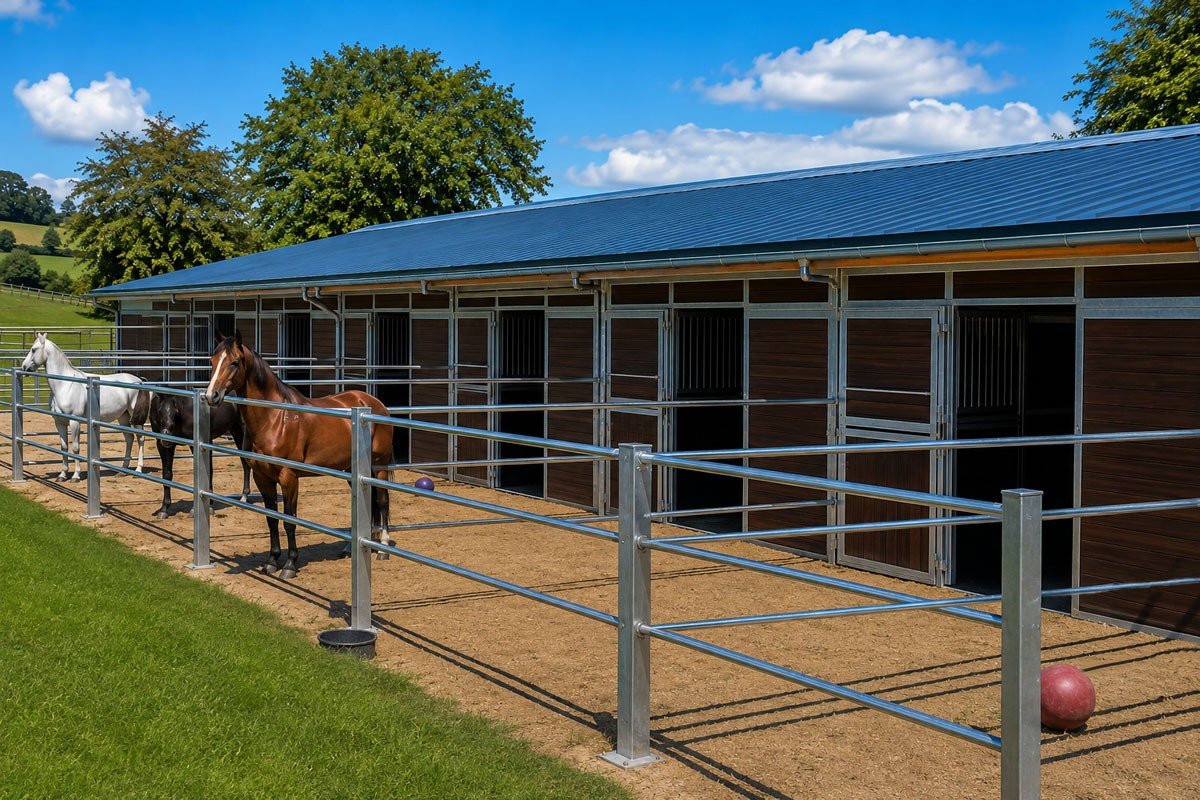

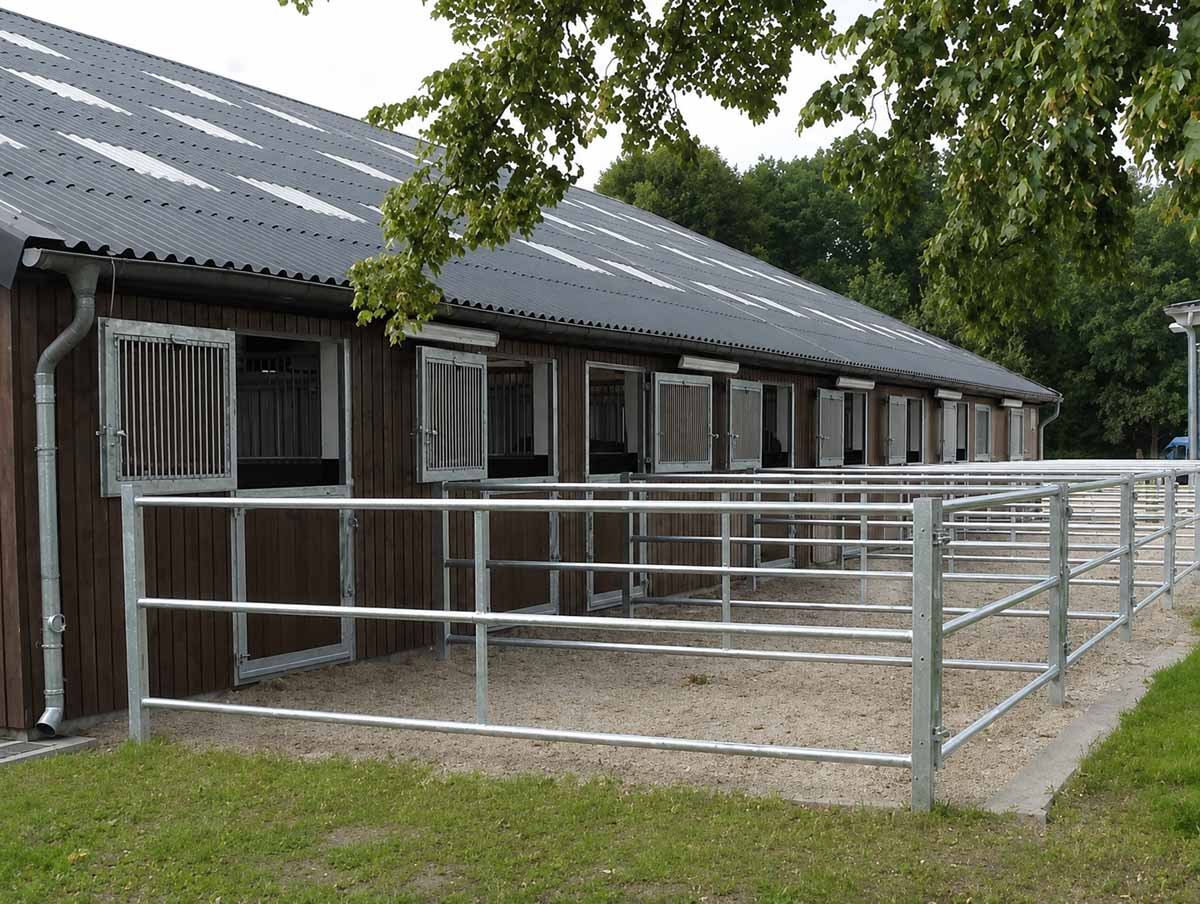

Horse stall runs—also called stall runouts, attached paddocks or outdoor stall runs: by connecting an indoor stall to a secure outdoor enclosure, horse owners can provide their horses with more space to move around, allow them to observe their surroundings, and give them the freedom to choose between indoor sheltered areas and outdoor spaces.
A runout is not simply an additional fenced area, however. Poor drainage, narrow gates, unsafe fencing or an unsuitable ground surface can quickly turn a functional facility into a muddy, difficult-to-maintain space.
The following recommendations can help horse owners and equestrian facility planners design safe, practical, and suitable horse stall runs for long-term use.
A typical system may include:
• Indoor horse stables
• An exterior Dutch door or full-height paddock door
• Outdoor activity area with fencing
• All-weather footing
• Drainage system around stables and activity areas
• A gate for staff or machinery access
• Optional shading, drinking and feeding equipment
Horse stall runs should not be confused with large turnout paddocks or pastures. The activity area can provide additional space and environmental stimulation, but it may not be sufficient to offer the space required for continuous movement, grazing, or normal pastoral activities.
When conditions permit, horses should still be appropriately moved to larger grazing lands or pastures.
More Freedom of Movement
Horses with access to an activity area can move freely between the stable and the outdoor spaces, rather than spending extended periods confined to a closed indoor environment.
Optimal lighting and air circulation
The outdoor pathway provides natural light and fresh air.Integrating a well-designed stable ventilation system can create a more diverse and comfortable environment.
The exterior paddock door can also serve as an additional source of air circulation; however, it should not replace ridge vents, windows, or other stables ventilation systems.
The width of the stall run should generally be at least as wide as that of the connected stable. This creates a direct route while avoiding narrow corners near the entrance.
For example, a 12x12-foot stable can be connected to a 12-foot-wide run. The length can be adjusted based on the available land and the intended use.
Research on dryland and athletic training arenas generally recommends an initial baseline area of approximately 400–500 sq ft per horse. A stall run used only as supplemental space may be smaller, while an enclosure expected to serve as the horse's main outdoor living area should generally be larger.
Dimensions should always take into account the following factors:
• Horse breed and body size
• Local animal welfare requirements
• Captivity duration
• Exercise and grazing arrangements
• Personal temperament
• Climate and ground conditions
Longer rectangular runs encourage more forward movement than extremely short or irregularly shaped enclosures.
The external stable gate is one of the most critical components of the entire system. It serves as a transitional zone between indoor and outdoor environments and is frequently used by both horses and staff.
A Dutch door has independently operating upper and lower sections. Opening the upper section can increase light and airflow while the lower section remains closed.
When both the upper and lower sections are opened and secured, the horse can move freely between the stall and run. An appropriate stopper is essential to prevent any swinging part from striking the horse or being blown by the wind.
Full-Height Paddock Doors
The full-height hinged door features a wide opening and a clean, minimalist design. The opening direction must be safe, and the opening must be securely locked after operation.
Hope Horse offers customizable farm and stables equipment, including hinged and sliding stable systems, partitions, and door configurations suitable for various stable layouts.
Regardless of the door type, the opening shall:
• Sufficiently spacious for easy movement
• No sharp edges
• Simplifies operator use
• Prevent accidental activation
• Avoid loose or protruding hardware components
• Matches ground height
The drainage conditions often determine whether a fence is practical or muddy.
Water may enter the run through the following pathways:
• Direct rainfall
• Barn roof runoff
• Overflowing water container
• Rinse operation
• Peripheral highlands
• Seasonal groundwater
Surface drainage systems should be located away from run to prevent water from flowing into them. A moderate slope can help reduce water accumulation while preventing erosion or foundation instability.
Roof drainage gutters and downspouts should direct clean roof runoff away from stall run and areas with high pedestrian traffic.
More durable all-weather runways typically require a multi-layered structure:
1. Prepared and leveled subgrade soil
2. Geotextile or other isolation layer (as appropriate)
3. Compacted structural aggregate
4. Wear-resistant surface layer suitable for horse walking
Optional surface materials include:
• Stone powder
• Screened material
fine gravel
• Stable specialized equestrian ground material
• Use of wood chips under specific conditions
• Mud-resistant screen
The best choice depends on drainage conditions, climate, hoof care, maintenance equipment, and the availability of local materials.
The surface should be sufficiently firm to facilitate the removal of manure, yet still be soft enough to allow horses to stand and move comfortably.
The most frequently used area is usually outside the stall door. The horses repeatedly turn, stop, and push off the ground at this location, causing rapid compaction and displacement of the soil.
Additional reinforcement measures may be required:
• Stables entrance
• Around the water dispenser
• Near the feeding device
• Along the main entrance
• Next to the shared fence
• Low-lying areas
The rubber mat can be laid directly on the inner side of the doorway or on a designated covered transition area, provided that the ground is stable and has good drainage.
Hope Horse premium horse stall mat features a non-slip surface and a grooved backing designed to enhance traction and drainage performance in stables, corridors, and washing areas.
The stall run fence must be able to withstand repeated contact and various weather conditions.
An appropriate horse fence should possess the following characteristics:
• Sufficient strength
• Good field of vision
• Smooth surfaces for horses
• Secure connection
• No exposed sharp fasteners
• No openings that could potentially trap the hoof, leg, or head
• Materials suited to the local climate
Hope Horse offers a variety of horse enclosure solutions, including PVC horse enclosure panels, steel fence and oval tube-based pasture enclosures. The final solution should be selected based on whether the ranch requires a permanent perimeter fence, modular fencing panels, or a custom layout.
Side-by-side runs allow horses to see and interact with their neighbors, but the design of the fences must take into account the behavior of horses.
Horses with compatible temperaments can benefit from safe visual and social interactions. Aggressive horses, stallions, or horses requiring isolation may need:
• Lower solid partition
• Double-layer fence
• Isolation Channel
• Higher or reinforced fence panels
• Reduce horse nose-to-nose contact
• Separate management
The facility should be able to modify contact levels when necessary .Removable privacy partitions or modular partitions can make the runs more flexible.
Each run should be equipped with a gate, allowing staff to enter without having to pass through the indoor stable.
The independent external gate facilitates:
• Remove manure
• Maintenance fence
• Maintain footing
• Material transportation
• Move horses in emergency situations
In commercial premises, certain main entrances may need to accommodate wheelbarrows, small loaders, or other maintenance equipment.
Gate latches should be operable by staff but difficult for horses to manipulate. Chains, sharp hooks and loose rope closures are generally unsuitable for permanent high-use installations.
When water or feed is provided in the stall run, the placement of the equipment can affect the horses' movement and ground wear.
Avoid placing all your resources outside the stall door. Concentrating water, hay, and feed in a small area will increase the horse's movement and muddy conditions.
If space permits, placing resources separately can encourage horses to move between different areas. However, the equipment should be easy for personnel to inspect, replenish, and clean.
The design of stall runs should take maintenance convenience into account from the very beginning.
Manure and wasted hay retain moisture and can turn an otherwise functional surface into mud. Frequent removal improves hygiene, reduces flies and helps protect drainage performance.
The daily maintenance plan shall include:
• Daily or periodic manure removal
• Remove discarded hay
• Inspect doors, windows, and door locks
• Inspect fences and hardware components
• Re-leveling of the displaced foundation
• Clean drainage ditches and eave grooves
• Monitoring waterers for leaks
• Check for any damage around the fence
• Seasonal foundation reinforcement
Consider the stall run as a substitute for grazing land
While a narrow run can provide space for movement and outdoor activities, most healthy horses still require more substantial physical exercise and opportunities for social interaction.
Neglecting roof water accumulation
Even with a well-installed foundation system, problems can still arise if the drainage from the entire barn roof is concentrated near the barn entrance.
Install a fence before leveling the site
Before installing permanent fencing to restrict mechanical access, drainage systems, foundation preparation, and underground utility installation shall be completed.
Use a narrow exterior door
A narrow opening can cause horses to hesitate, make sudden turns, or run into the door frame. The door dimensions should match the horse's size and the final ground height.
Allow the door to swing freely
All hinge-mounted doors and fence gates shall be designed to open and close securely.
Creating Runs That Cannot Be Mechanically Maintained
If the facility expects to use loaders or grading equipment, at least some gates and traffic routes must accommodate them.
Focus solely on initial costs
Low-cost fencing or inadequate site preparation may lead to frequent repairs, slurry removal work, and higher labor costs.
A successful horse stall run should feel like a natural extension of the barn rather than an enclosure added as an afterthought.
The indoor stall, exterior door, fencing, footing and drainage must function as one coordinated system.
When these elements are planned together, a runout can provide horses with more choice and movement while helping staff operate the facility efficiently.
Hope Horse supplies customizable horse stalls, stable doors, partitions, flooring and fencing for private barns and commercial equestrian projects.
Customers can provide drawings, dimensions and operational requirements to develop a coordinated solution for the stall and attached outdoor run.
Explore Hope Horse stable equipment to begin planning a safer and more practical horse stall run system.
